Enervex RS Fireplace / Chimney Fans
Enervex... is Exhausto / Exodraft
Stocking Dealer
- Knowledgeable Staff - Expedited Shipping Available
|
Assures a negative pressure in the entire chimney or stack system.
Discharges horizontally (vertically, if sidewall vented) at a
high velocity.
4 sizes
RS 009, RS 012, RS
014, RS 016
|
Easy No-Mess Installation.
Quiet operation.
Eliminates smoke odors. |
|
 |
|
Easy to operate.
Low operating cost.
Variable speed
motor. |
|

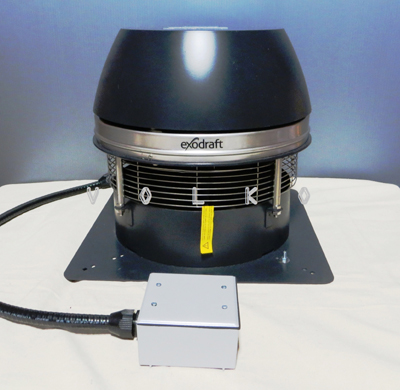

The RS Chimney and Fireplace Fan is the guaranteed solution to stop smoking
fireplaces. The extremely quiet and reliable chimney fan maintains the perfect
draft to ensure a smoke free environment. The fan is easy to use and virtually
maintenance free. It should be used with gas fireplaces. The fan duplicates as a
ventilator: Simply turn it on to rid your home of stale air, cigarette smoke,
etc.
Downloadable PDF's
Enervex Literature
→
RS Chimney Fan Brochure
→
Hearth Venting Manual
→
RS Chimney Fan Product Info
→
RS Chimney Fan Installation
Manual |
|
Material |
Motor |
|
Exhausto fans housing is made of cast aluminum with a
thickness of 3/16" and is extremely corrosion resistant. One coat of grey
hammer-paint finish is applied.
Axial vanes in stainless steel, dynamically and statically balanced to
assure low noise level and vibration-free operation.
|
Split capacitor, totally enclosed. Class H insulated, IP54
Protection Class. Sealed ball bearings. Variable Speed.
Thermal overload protection.
|
|
Standard Equipment |
Listings |
Approvals |
|
2"x 4" or 4"x 4" junction box with cover and conduit
Fiber Mat and Mounting Brackets
Bird Screen
5 Amp Fan Speed Control
|
ETL listing #E109205550D
UL378 - Draft Equipment
CSA-CAN3-B255-M81 -
Mechanical Flue Gas Exhausters
|
CE Compliant
City of New York Department of Building
City of Los Angeles
The Commonwealth of Massachusetts
(G1-1295-29)
|
|
 |
 |
|
Fan Model |
Part Number |
|
RS 009 |
101.0299.1200 |
|
RS 012
|
101.0499.1200 |
|
RS 014 |
101.0699.1200 |
|
RS 016 |
101.0899.1200 |
Capacitor
Wiring Diagram
1 Junction Box
2 Conduit/cord
3 Motor
4 Motor Housing
5 Cooling Plates
6 Bird Screen
7 Base Plate
8 Locking Nut
9 Inlet
10 Axial Vane
11 Hinges
12 Capacitor
( inside J-box )
|
Please call 800 685 8263 or
email us
(info@volko.com) for
prices
Accessories
 |
 |
 |
 |
 |
 |
 |
FSC
Fan Speed Control
Included with RS Series Fans |
RSD
Dilution Bolts |
MFD
Damper System
Gas Only |
SCA
Chimney Adapter |
EW40
Wireless Control |
EFC 211
Control |
ADC100
Fan Control
Gas Only |
|
Warranty
6 month UNCONDITIONAL
money back guarantee
If you are not completely satisfied with the RS
chimney fan, it can be returned for a full refund, less shipping, for up to
6 months after the date of purchase. This
does not include accessories such as adapters or controls.
2 yr factory warranty & 10 yr corrosion perforation warranty
Manufactured at ISO9001 certified
plant. |
Frequently asked questions about Enervex fans.
Enervex Fan?...
but all the new fans say Exodraft.
Exhausto is now Exodraft, distributed as Enervex.
Read More...
What happens when you have a
fire in the fireplace and a power failure occurs?
You will most likely experience the same
problems you had before the chimney fan was installed.
What if the chimney has a
constant down-draft and odor when not in use?
Run the chimney fan at a low speed.
Does the fan always have to be
on when I have a fire in the fireplace?
Yes, the motor can only be cooled when the
chimney fan is operating. You may, however, run it at a very low speed.
The fireplace spills due to
negative pressure in the house. Won’t the chimney fan add to the problem?
Any exhaust fan will pull air out. However,
proper use of the fan speed control assures the chimney fan simply simulates the
natural draft required for the fireplace to operate. Thus, the chimney fan will
not exhaust more air than a well-functioning fireplace would have done.
*It is important to
emphasize that all furnaces, water heaters and other combustion equipment be
checked for proper venting before regular use of a chimney fan.
Can the fan be recessed or
hidden?
Yes, the fan may be recessed or hidden, for
example, with chimney pots, copper caps, or cupolas*
as long as the fan is allowed to vent properly.
Does the chimney fan have to
be removed every time I have my chimney cleaned?
No, the fan has hinges on which it can be
tilted open for easy access of the chimney.
Does the fan require its own
circuit?
No, the fan only draws about 1 to 4 amps,
depending on the size, and runs on 110 volts, which is standard in most homes.
Can you run the wire inside
the flue?
No. However, you may run it inside a chase.
Otherwise it will have to be run on the outside of the chimney.
What kind of guarantee do I
have that I will be satisfied with the fan?
Enervex offers a 6-month unconditional
guarantee
If you are not completely satisfied with the RS chimney
fan, it can be returned for a full refund, less shipping, for up to 6 months
after the date of purchase.
This does not
include accessories such as adapters or controls.
2-yr factory warranty on motor and a 10-yr corrosion perforation
warranty.
110V energy efficient and maintenance free motor consumes
energy equivalent to a standard light bulb. Easy, no-mess installation. Use for wood, gas, pellet or coal appliances. The
compact design of the fan makes it barely visible from ground level.
However, the fan may be recessed or hidden behind chimney top enclosure such as
copper caps, shrouds, cupolas, etc.
Enervex?... but
my new fan says Exodraft.
Exhausto is now Exodraft, distributed as Enervex.
Read More...
