FSC - Fan Speed Control
ENERVEX Fan Speed Control FSC is used in conjunction with all
single-phased chimney fans. The fan speed control is specially
engineered to provide variable speed control of split capacitor motors.
The control is accomplished by reducing the line voltage to the motor
thereby using only the energy required to maintain the desired volume of
air flow (fan speed).
| FSC5 - 5amp Speed Control FSC8 - 8amp Speed Control
FSC5 is included with all RS009-016 fans.. RS9
RS12 RS14 RS16 |
|
|
 |
EW40 Wireless Control
DISCONTINUED
With the EW 40 Wireless Control, you do not have to run a wire between
the chimney fan and the appliance/fireplace, which eliminates any
demolition or construction, saving time and money. The control features
an automatic on/off function, which keeps the chimney working perfectly
without any manual intervention. For safety purposes, the control also
has an alarm that indicates when its time to refuel and a high
temperature warning that could signal a chimney fire.
|
 |
ADC150 Fan Control
The ENERVEX ADC150 is a Modulating Fan Control used with up to 2
appliances to monitor and maintain a constant draft or pressure
in a chimney or duct. The ADC150 can be used with models RS, RSHT,
and GSV fans. It can control the fan speed directly or via a
Variable Frequency Drive (VFD, sold seperately). The ADC150 is
typically used to control the draft of a gas-fired, sealed
fireplace or water heaters.
The ADC150 monitors the draft in a chimney system via a
connection to a pressure transducer (XTP2) attached to the
chimney, and maintains the draft by modulating the fan speed. It
provides a 10-120V AC power to single phase fans and 0-10V
DC control signal to control 3-phase fans via a variable
frequency drive.
|
|
|
 |

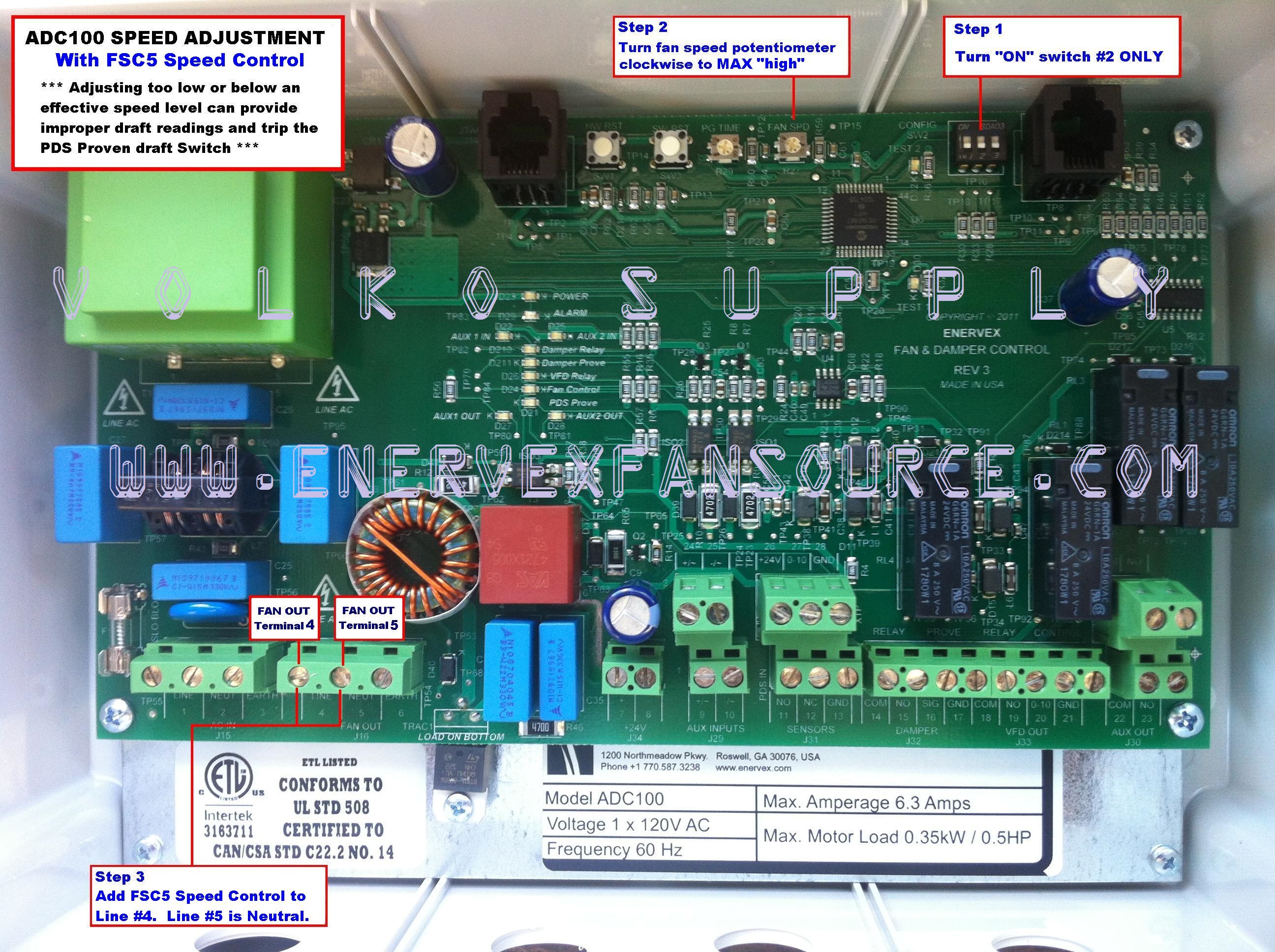

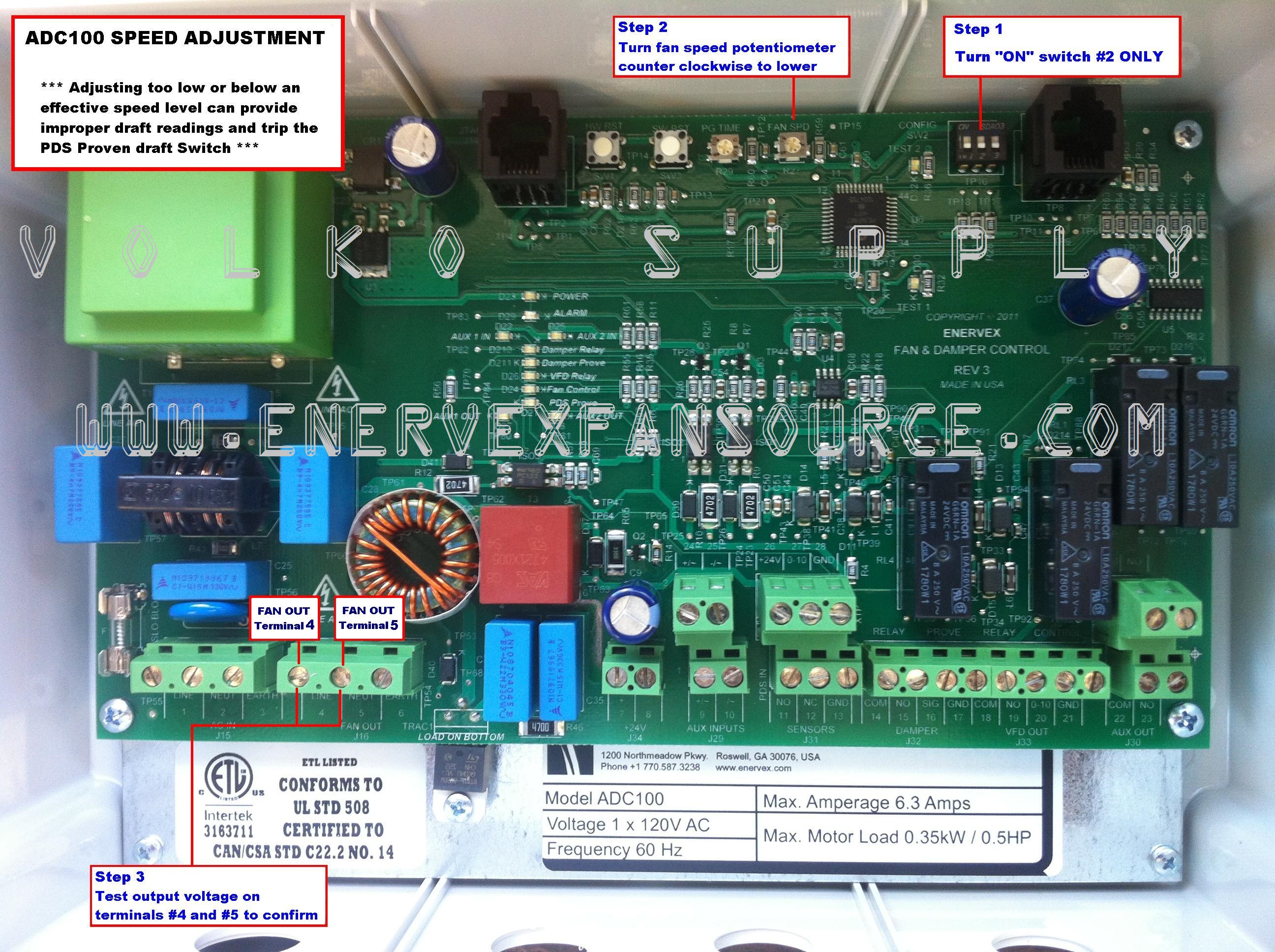

ADC100
ADJUSTMENT | ADJUSTMENT
w/ FSC5 Control |
 |
 |
|
|
ADC100 Fan Control
The ENERVEX ADC100 Fan Control is used to control draft in simple
fireplace systems where modulation is not required. It controls the
speed of the fan to maintain proper draft in the chimney. The control
can be used with Models RS and GSV, and is typically used to control the
draft of a gas-fired fireplace, furnace, stove, BBQ or pizza oven.
The ADC100 comes with an external PDS-1. The PDS is a NO/NC switch that
ensures the pressure in the chimney is maintained at or above the
internal setting of the switch.
The ADC100 operates a chimney fan at a set speed to create and maintain
proper mechanical draft at the outlet of a heating appliance(s). The
control provides a 10-120V AC signal to single phase fans, as well as a
0-10V DC signal that can be interpreted to control 3-phase fans by a
variable frequency drive.
Some of the control's features are:
Appliance safety interlock... Automatic reset...
Manual and automatic
fan speed setting...
Integrated damper control function. |
|
|
|
 |
EFC211 Control
Used with wood-fired heating appliances, the ENERVEX EFC 211 Fan
Control features an audible and visual alarm. The EFC 211 control
maintains the proper draft by controlling the proper speed of a chimney
fan. The EFC 211 is designed for use with an ENERVEX Chimney Fans and
is for indoor installation only. It is typically used with either a
wood-fired fireplace or stove or a wood-fired pizza-oven in a restaurant
kitchen.
NOTE:
The EFC 211 does not have any automatic on/off or provide speed
modulation during normal operation.
The EFC 211 is an enhanced manual speed control with an audible and
visual alarm to satisfy certain codes.
Listed to UL378.
Complies with NFPA211 Standard for Solid-fuel Chimneys and Fireplaces. |
EFC 211 Control
Product Info PDF
Installation PDF |
|
| |
|
 |
PDS-1 Proven Draft Switch
| The Proven Draft Switch (PDS1) is used for insufficient draft
protection, so if an unsafe draft condition occurs whether a
mechanical or electrical failure the switch will shut down the heating
appliance. It is typically used with gas or oil fired appliances where
it can be interlocked with the gas supply valve or the safety or control
circuit of the appliance. |
PDS 1 Control
Product Info PDF
Installation PDF |
|
|
|
RSD - Dilution Bolts
The RSD Dilution Bolts are used to lift the fan above the chimney or the
steel chimney adapter. The bolts are designed to obtain a vibration-free
operation as well as to allow dilution air to enter the fan to cool off
the flue gasses.
RSD Dilution Bolts
Product Info PDF |
| |
800 685 8263 or email
us
(info@volko.com)
|
 |
SCA - Steel Chimney Adapter
The ENERVEX Steel Chimney Adapter is used when installing the RS chimney
fan on the top of a single, double or triple wall steel chimney. The
adapter is designed to slide into the steel chimney for a tight fit. The
outer diameter of the collar is 1/8 smaller than the inner diameter of
the steel chimney, and has a 5 deep collar.
SCA Adaptor
Product Info PDF |
 |

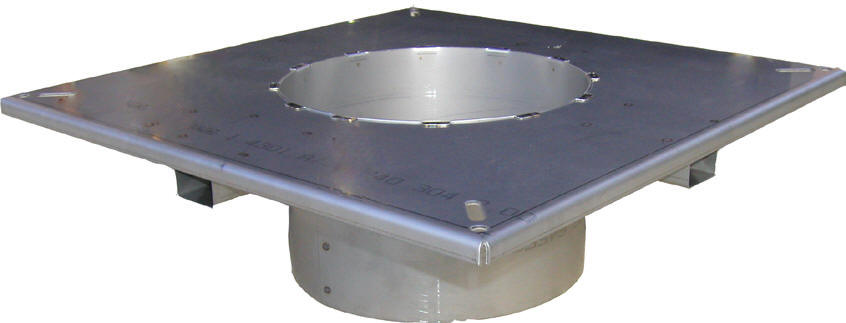

ASCA - Air-cooled Steel Chimney Adapter
The ENERVEX Air-Cooled Steel Chimney Adapters are used specifically when
installing a chimney fan on the top of a double-walled, air-cooled
chimney.
The adapter is designed to slide into the chimney for a tight fit. The
outer diameter of the collar is 1/8" smaller than the inner diameter of
the chimney. The 5" collar eliminates the need to secure the adapter
externally. ASCA Adaptor
Product Info PDF
|

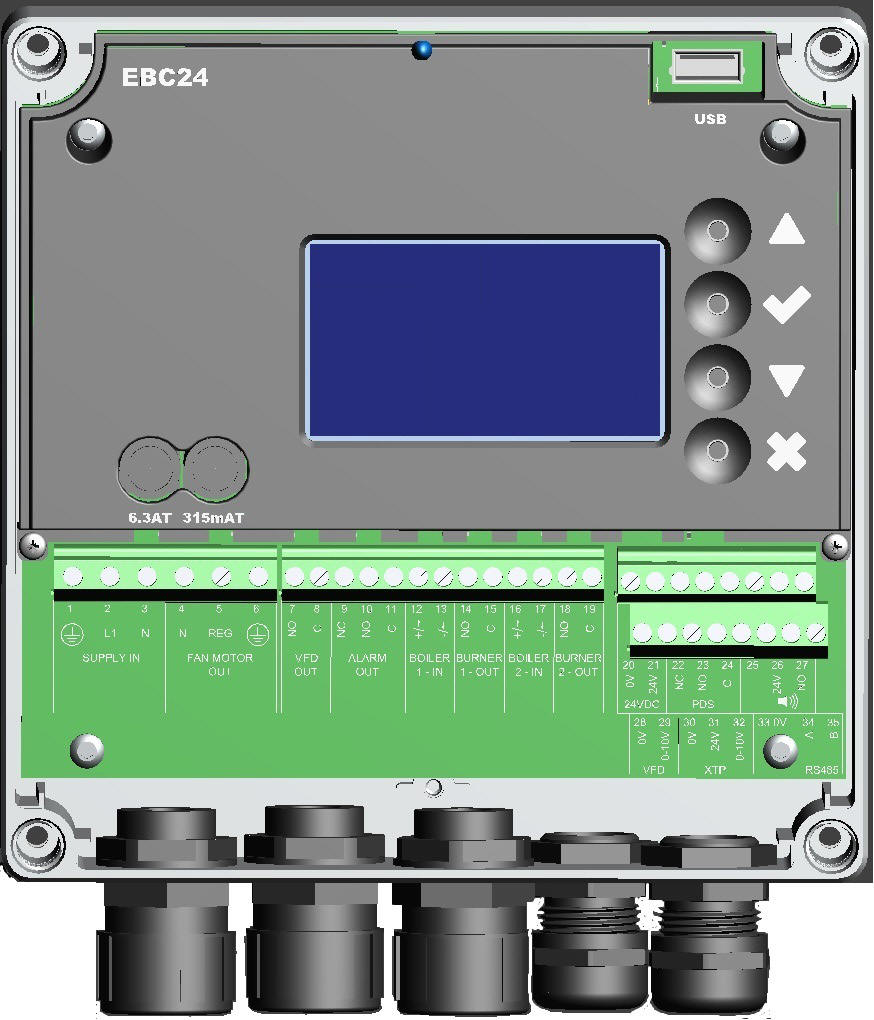

As of February 1st, 2024, all EBC 24 and MEC 24 Modulating Fan
Controls will include and ship with a bi-directional XTP sensor as
standard. It will no longer just be an option.
Enervex has made this upgrade to simplify their offering as the
bi-directional XTP can also operate in a unidirectional mode. The
operating mode can be selected from the EBC/MEC 24 setup menu.
The unidirectional XTP2 sensors will still be available as spare
parts.
