Usage includes exhausting kitchen hoods, gas fireplaces, bathrooms and maintaining negative pressure in duct systems.

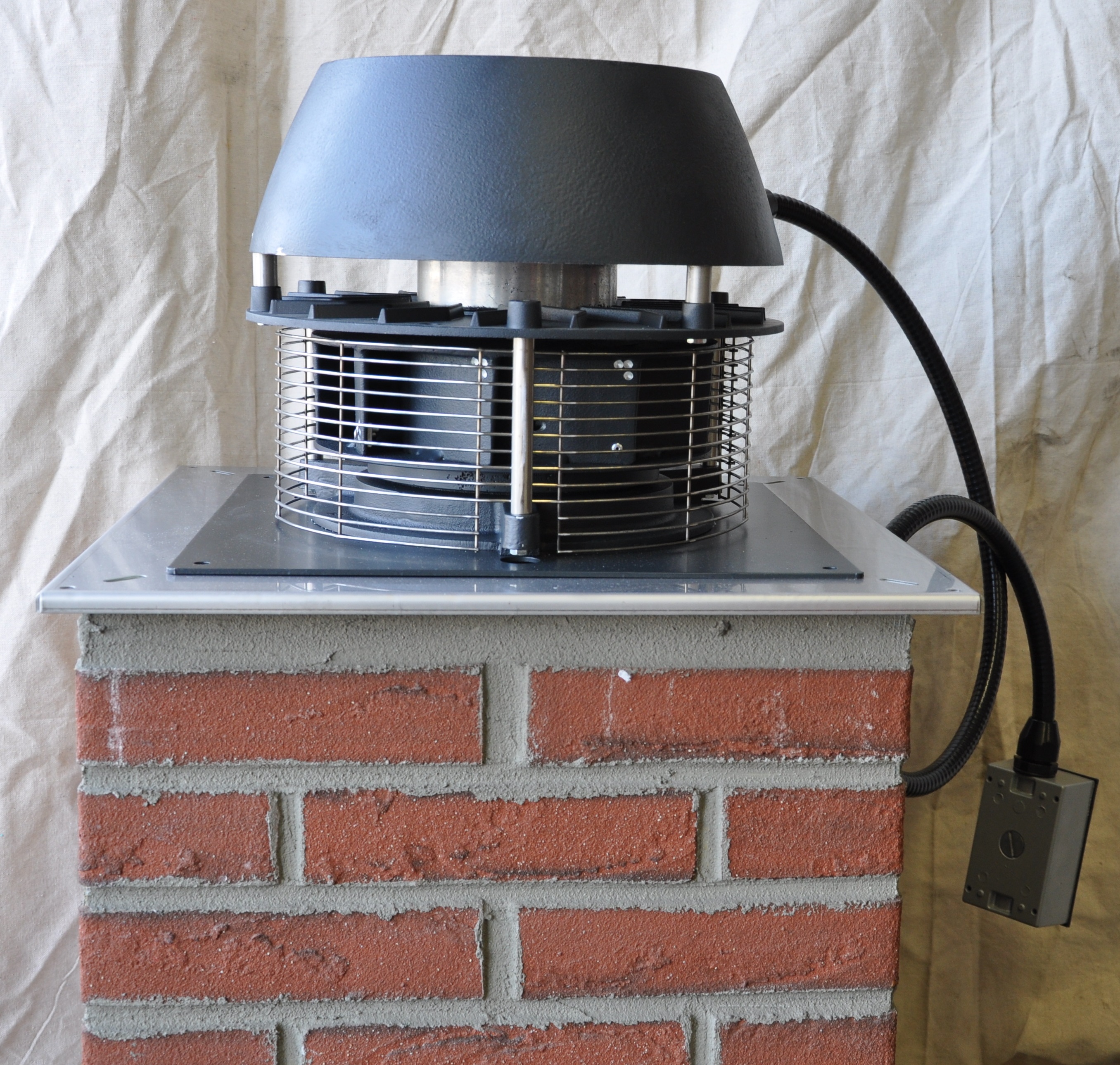

The Enervex model EFH Exhaust Fan is designed to provide exhaust in single and multi-story buildings. The fan assures that a neutral or negative pressure is maintained in the entire duct system.
This product is designed to prevent draft problems from occurring by creating mechanical draft in venting systems and thereby increasing the capacity and efficiency of a venting system.
The fan discharges horizontally at a high velocity. The top of the fan housing can be opened for easy service and access to duct. The fan must be mounted at the duct termination, in the vertical position.

The Enervex EFH fan is designed to provide exhaust to kitchens, bathrooms, and other building exhaust applications where the duct temperature does not exceed 175F.

The ADC 100 control allows for interlocking gas burning fireplaces and other appliances using milli-volt, 24v or 115v.  All you have to do is turn on your fireplace, and the fan automatically turns on and goes to the correct setting.

Downloadable PDF's

EFH Line Product Information

EFH Line Product Manual

Material

The fan housing is 3/16” cast aluminum. A coat of grey hammer paint is applied for added corrosion resistance. A backward curved impeller is made of cast aluminum.
It is statically and dynamically balanced to assure minimal noise and vibration during operation.

Approvals

CE Compliant

Manufactured at ISO9001 certified plant.

Listings

ETL listed to UL 705, Standard for Power Ventilators, 6th ed.

Warranty

 - 2-year factory warranty

 - 10-year warranty against corrosion perforation.

 Motor

 Split capacitor, totally enclosed. Class F insulated, IP54 Protection Class.
 Sealed ball bearings.

 Variable Speed. Thermal overload protection.

 Standard Equipment

  - 2” x 4” junction box with cover and conduit

  - Fiber Mat

  - Bird Screen

 Optional Equipment

  - Fan Speed Control

  - MEC 18 Exhaust Control

  - Roof Curb

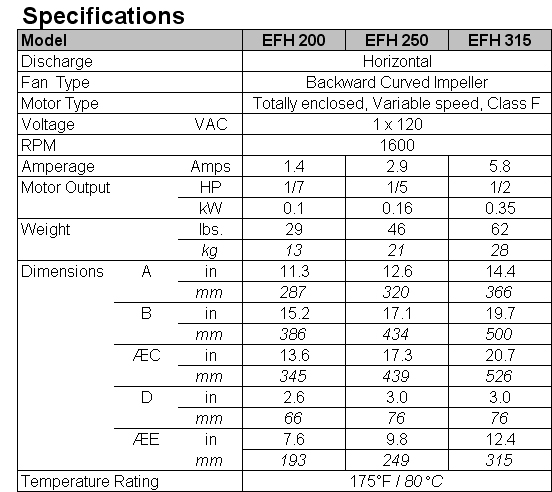

 Power requirements for the system depends on the fan size. Electrical requirements:

 EFH 200 1 x 120 V / 60 Hz 1.4 Amps

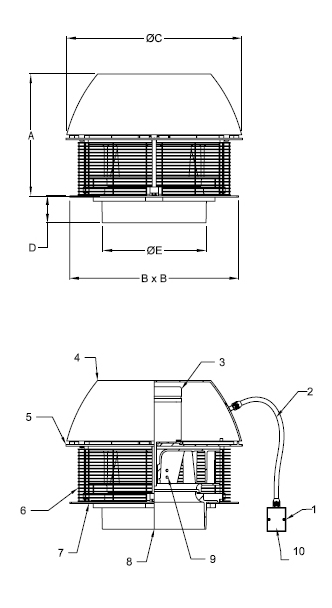

1 Junction Box

2 Conduit/cord

3 Motor

4 Motor Housing

5 Cooling Plates

6 Bird Screen

7 Base Plate
8 Inlet
9 Impeller
10 Capacitor (inside junction box)

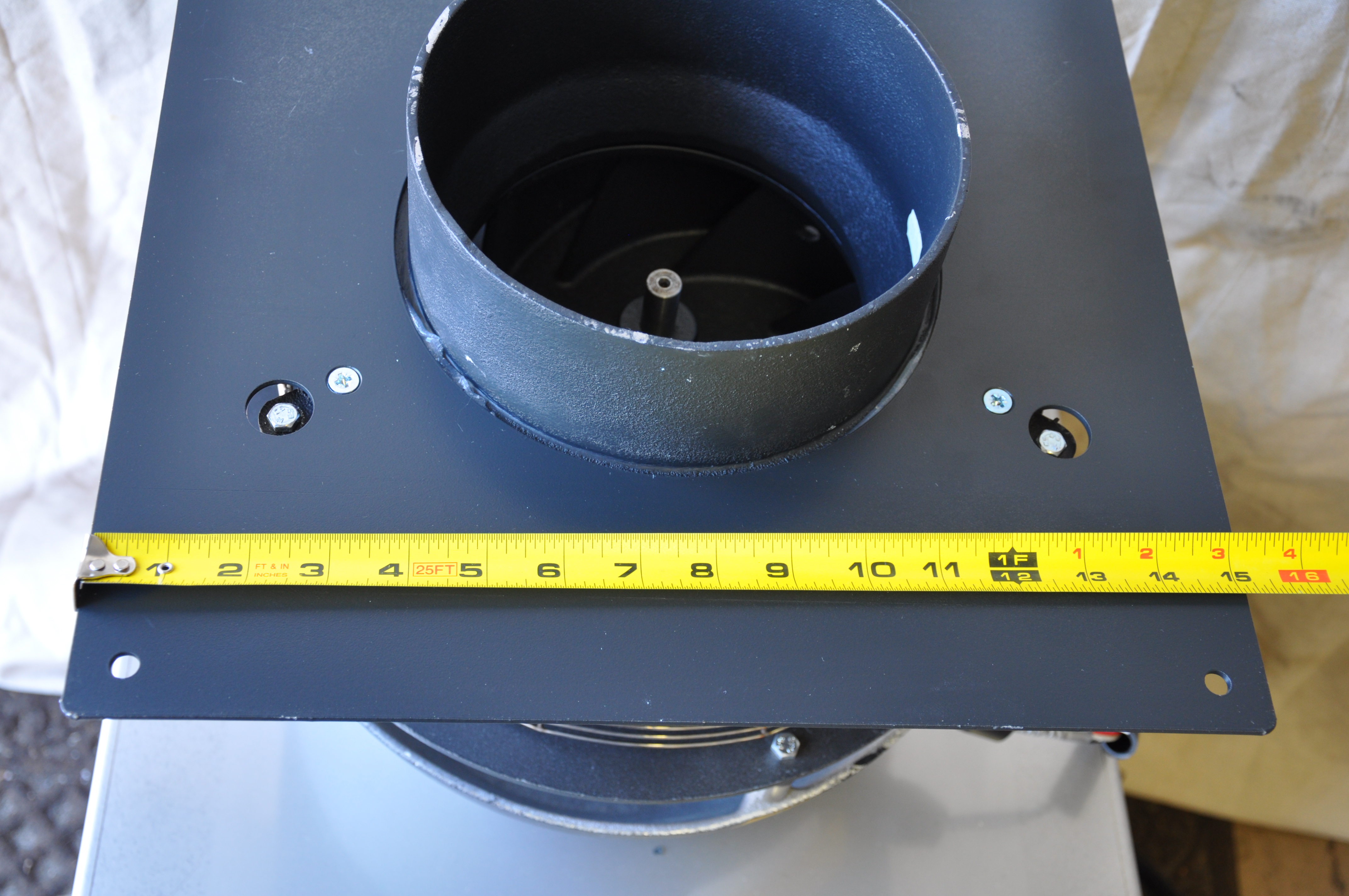

7 5/8" OD Collar	15 1/8" Plate

11 1/4" H	2 5/8" D Collar
