ENERVEX IntelliDraft™ - the Intelligent Draft Solution

The environmentally friendly IntelliDraft quietly maintains safe and proper draft for the fireplace while protecting a home from dangerous chimney downdraft and fireplace spillage.

Design

Today's fireplace designs challenge the traditional venting system design. IntelliDraft opens up many new design options while allowing for a larger view area of the fire and a more natural look.

Freedom to integrate almost any fireplace design
Eliminates the need for glass doors
Enables chimney designs that defy traditional design rules

Safety

Safety is always important. The IntelliDraft creates the safest operation for any gas-fired fireplace or decorative appliance, and exceeds even the building codes' strictest safety requirements.

Protects against downdrafts
Eliminates spillage and CO release due to building depressurization
Automatically shuts down fireplace operation, if conditions are unsafe.

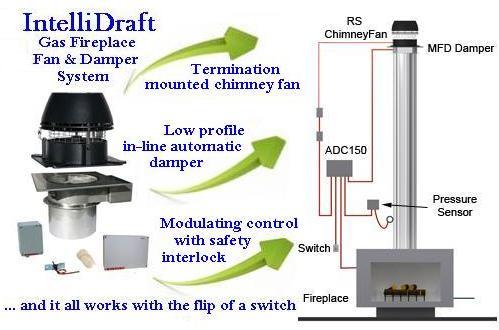

The IntelliDraft connects a draft and safety controller, the ADC150 and its pressure sensor, to an RS chimney fan, the MFD chimney damper and the fireplace's gas valve. When the user wants to turn on the fireplace – typically using a wall switch – the controller signals the mechanical chimney damper to open. When the damper is open, the controller automatically ramps up the chimney fan speed until the draft set-point has been reached and the integrated draft protection switch closes.

At this point, the controller allows the fireplace to fire by opening the gas valve. During operation of the fireplace the control continues to monitor the draft and will maintain the proper draft set-point by modulating the chimney fan speed whenever needed.

When the user turns the fireplace or appliance off, the control leaves the damper open until all residual combustion products have been exhausted out of the building by the chimney fan; then the control discontinues chimney fan operation and closes the damper. If for any reason the draft set-point can't be maintained during operation, the controller will completely shut down the fireplace or appliance operation.

Energy savings

A fireplace uses a lot of energy. Not only from the gas fire but also from the conditioned air that is constantly vented to the outside. IntelliDraft puts an end to this waste of energy.

Chimney is closed when the fireplace is not used
The draft is never excessive which saves fuel
Perfect operating conditions eliminate unnecessary carbon emissions.

Easy to Install
– Retrofit or New Installation
Although it is easier to integrate the IntelliDraft system in new
construction it is also very suitable for retrofit installations.
The installation process requires access to the chimney and the
fireplace control or gas valve. The only work performed inside
the house includes the installation of a switch and sometimes the
installation of a small pressure probe.
