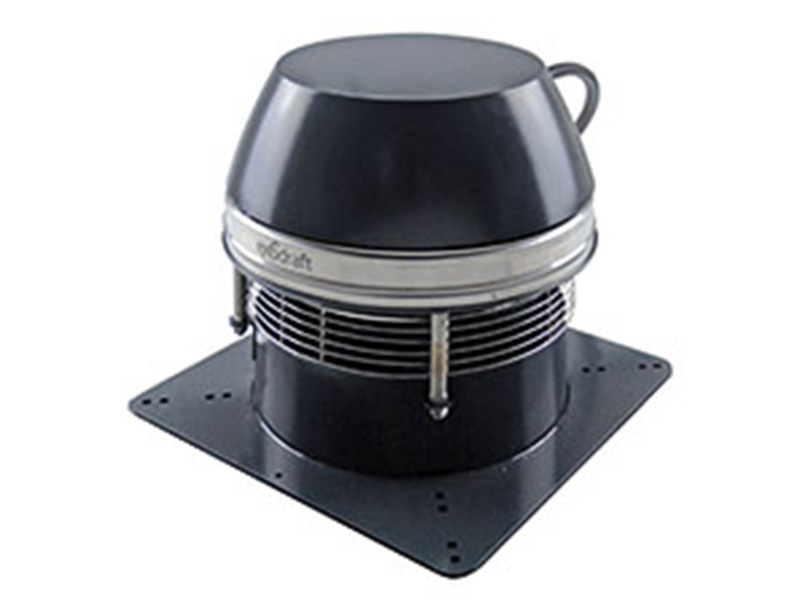

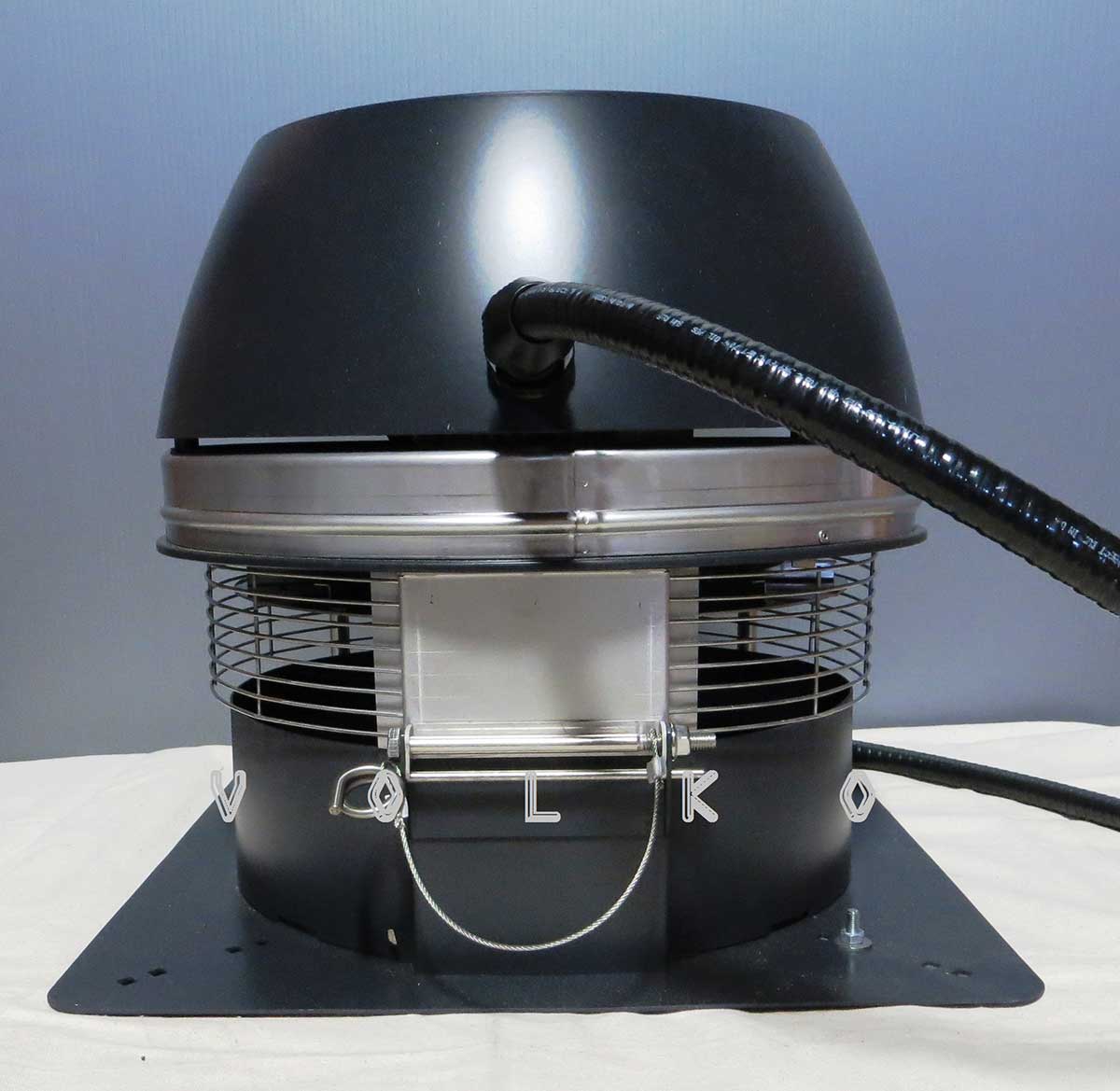

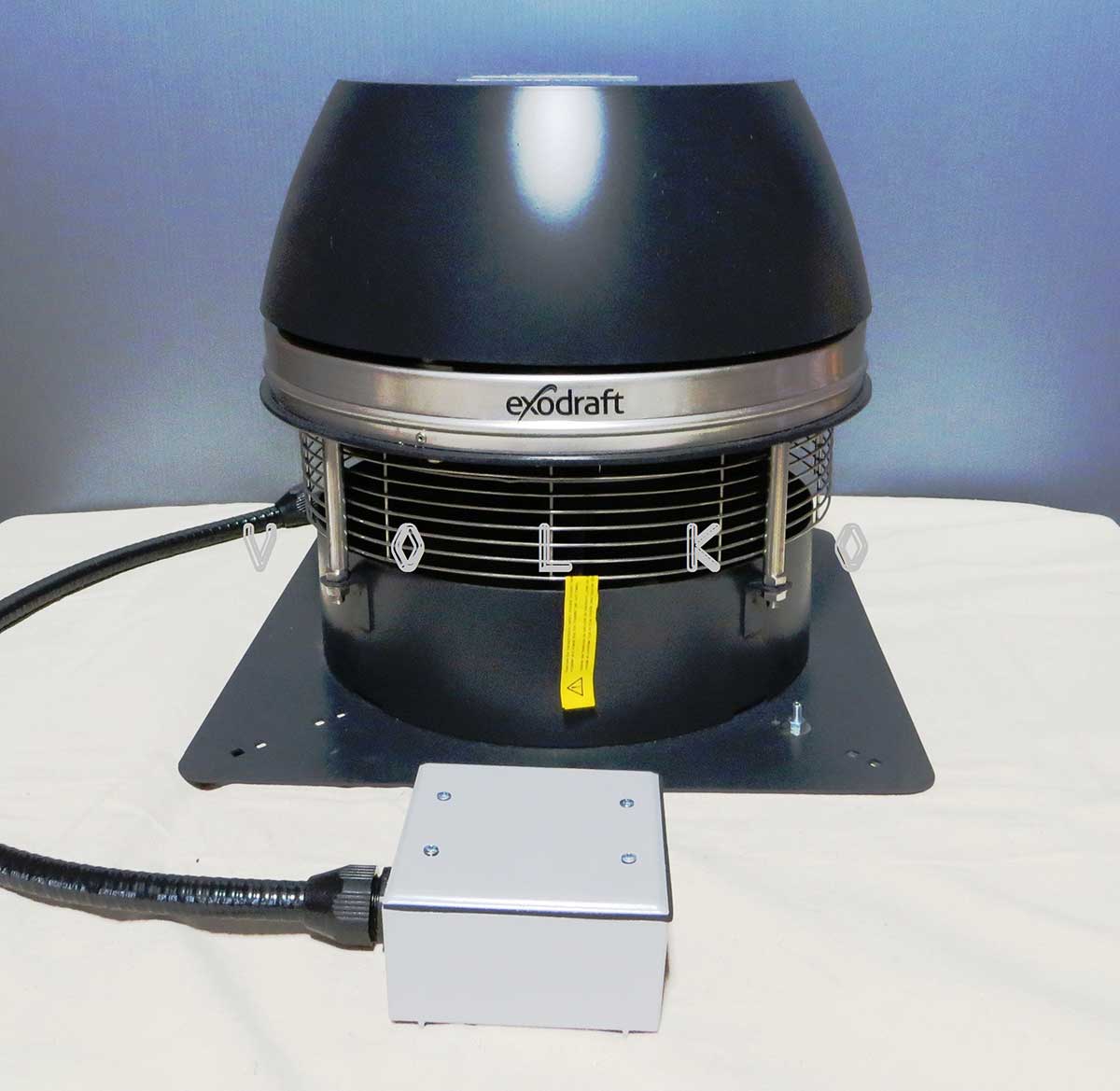

RSHT Chimney and Fireplace Fan

The RSHT Chimney Fan is a high temperature exhaust fan used to maintain proper draft in a solid fuel chimney or stack system.

Typical uses include venting of wood burning fireplaces, BBQ’s, pizza ovens and stoves.

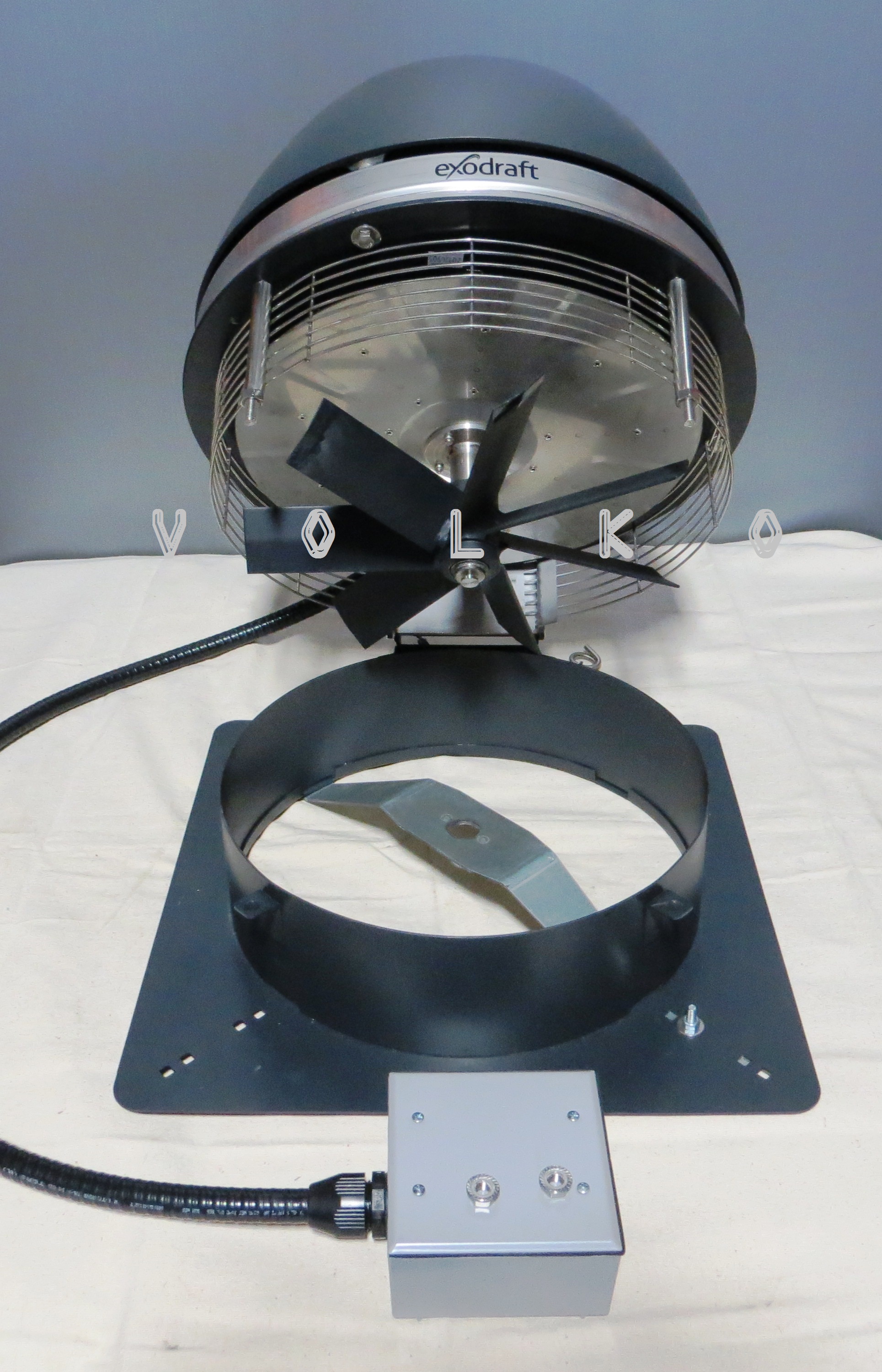

The RSHT Fan should be installed at the termination point of the chimney or stack section. The fan assures a negative pressure is maintained in the entire chimney or stack system. The fan discharges horizontally at a high velocity. The fan housing is hinged and the top can be opened for easy service and access to stack.

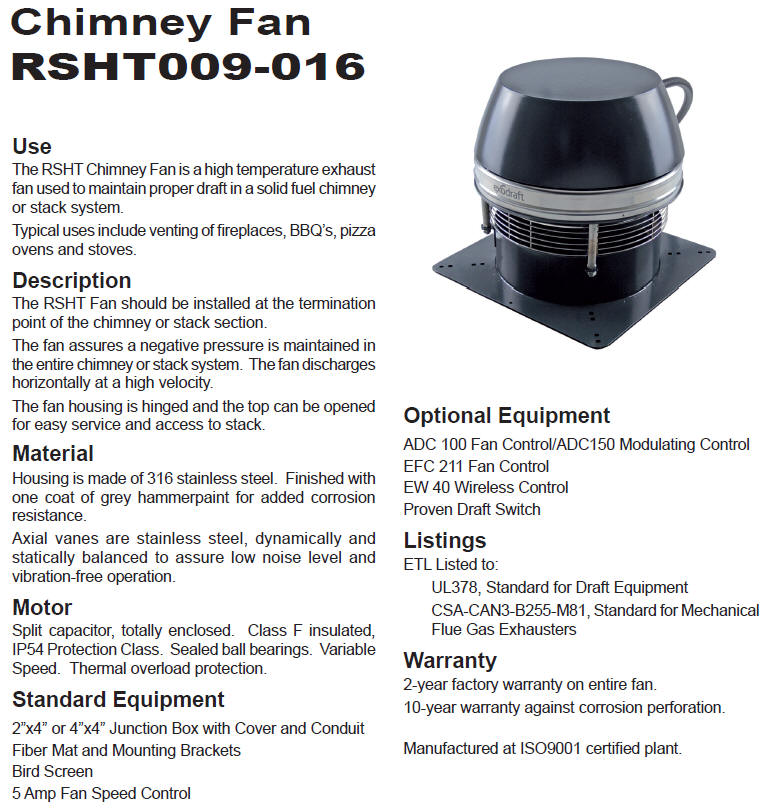

Printable PDF Data Sheet

Printable PDF Installation Manual

Wiring Diagram

Click for sizing an Enervex RS chimney fan.

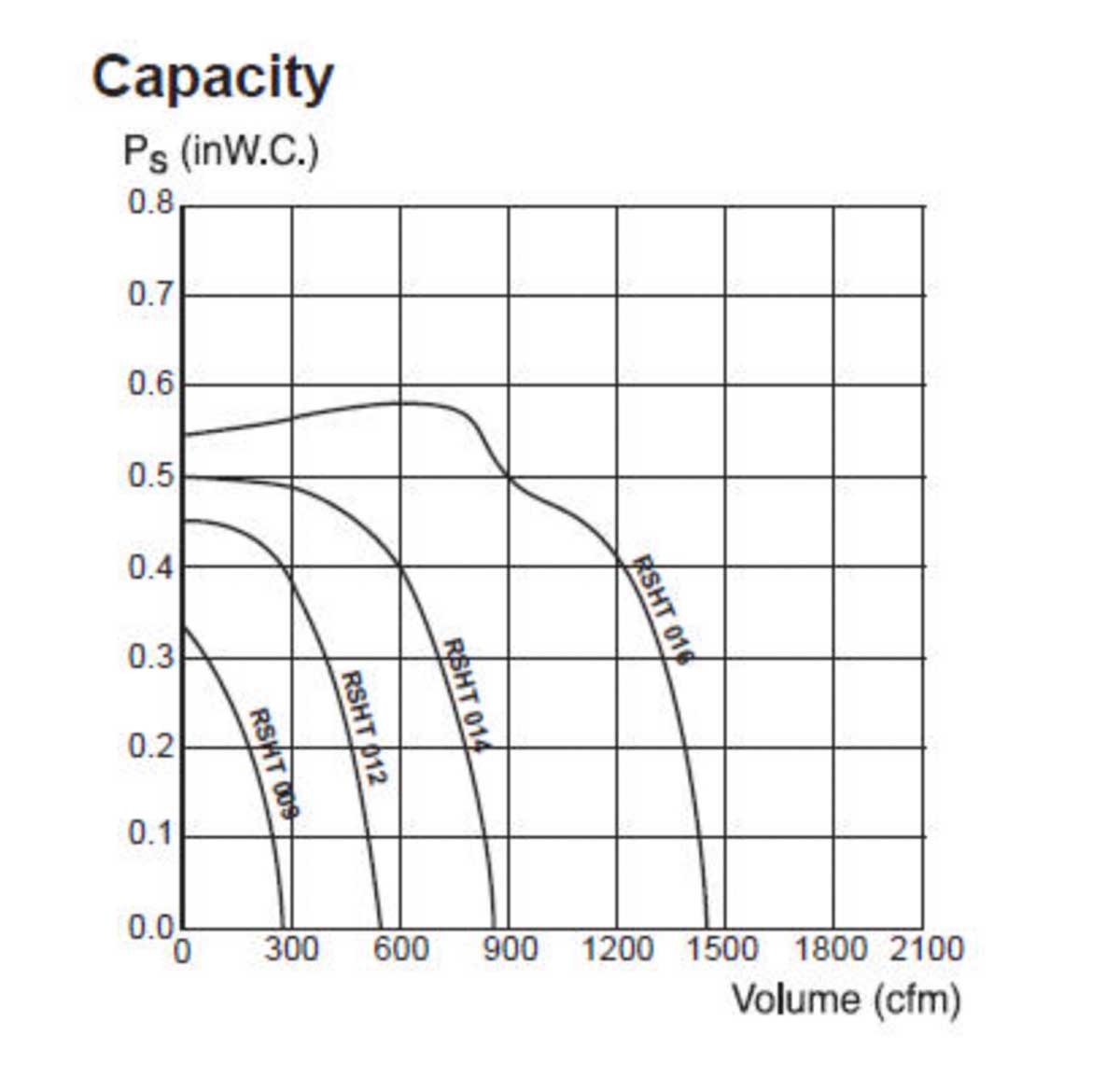

Sizing an RSHT Chimney Fan

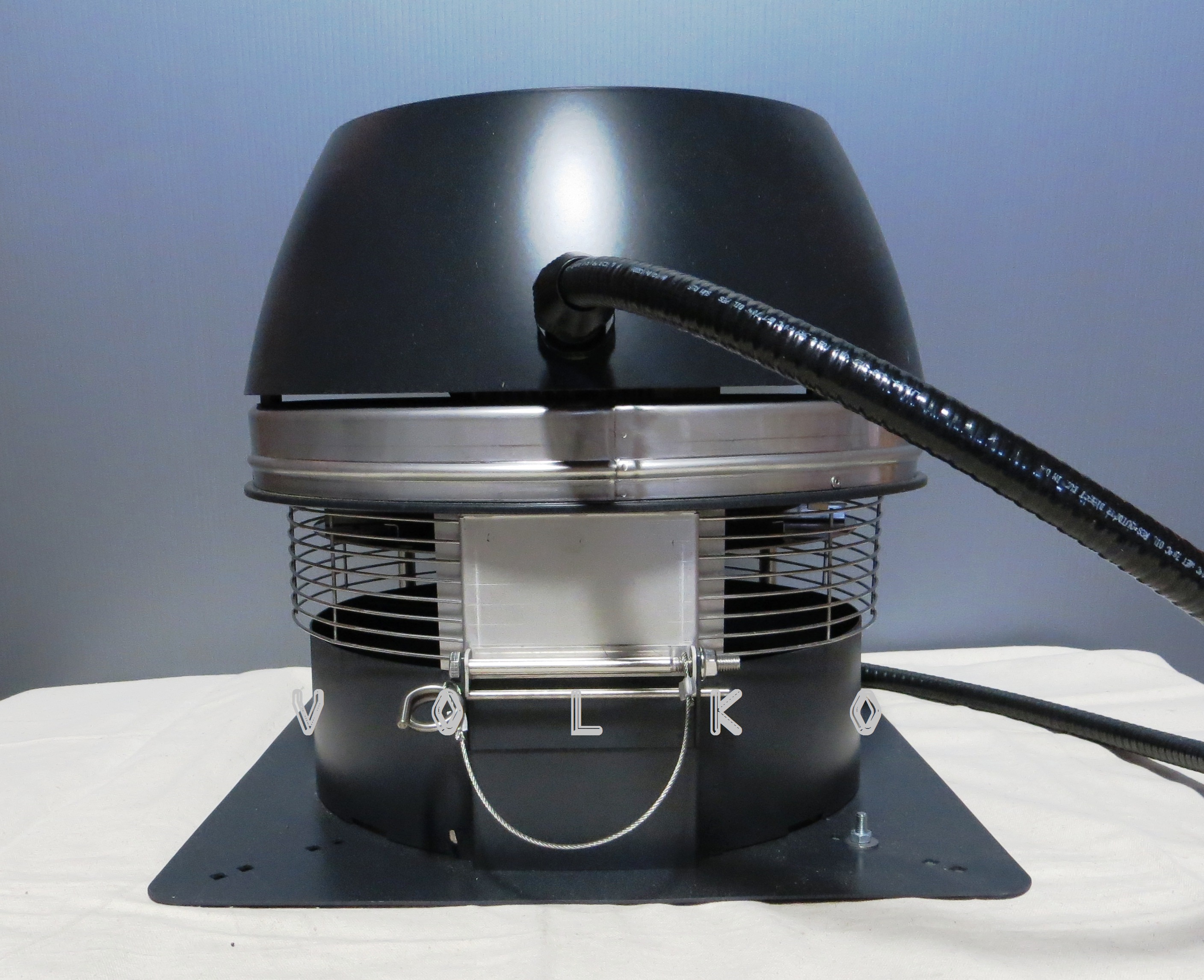

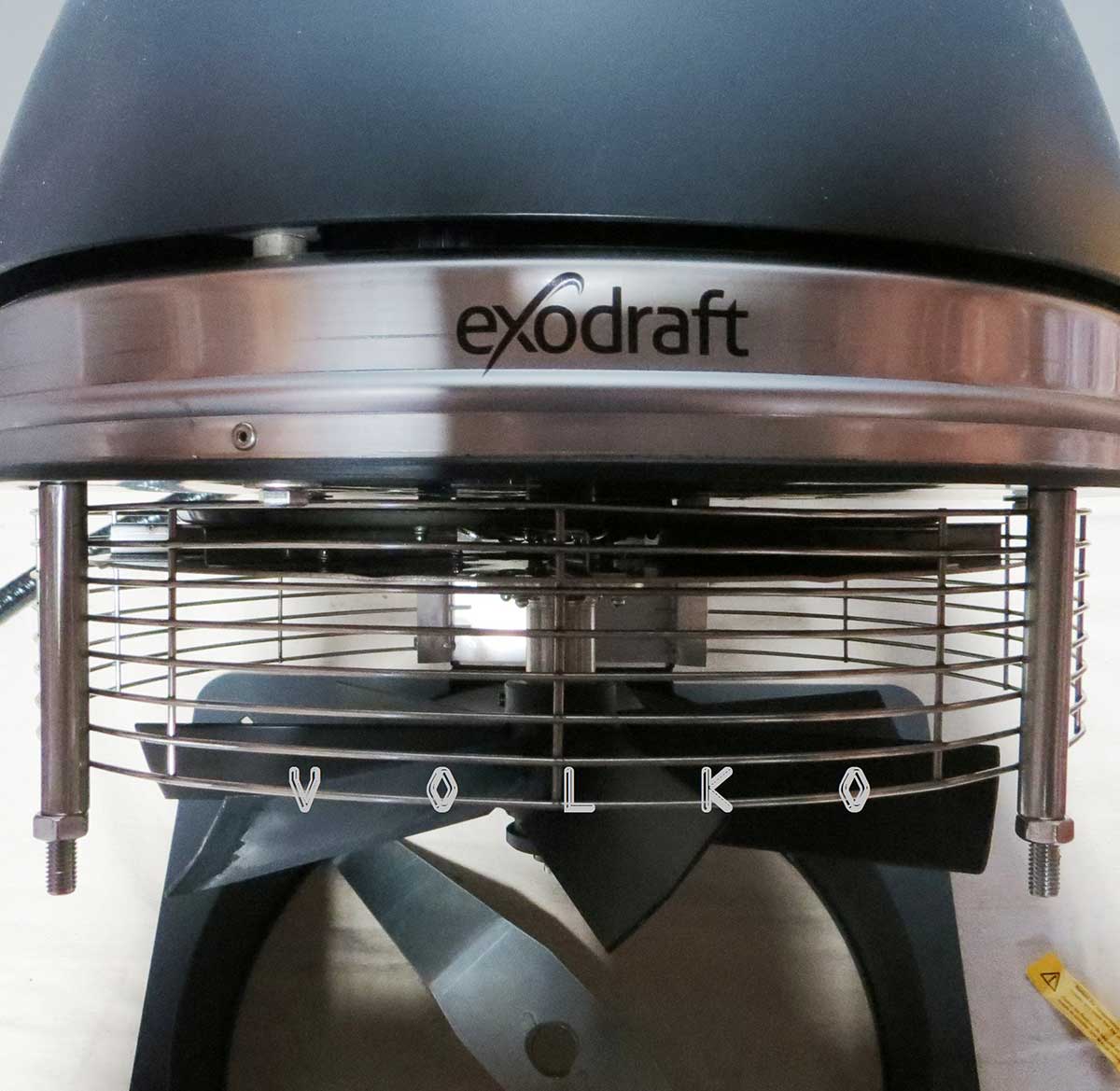

Stainless steel housing
and axial vane.

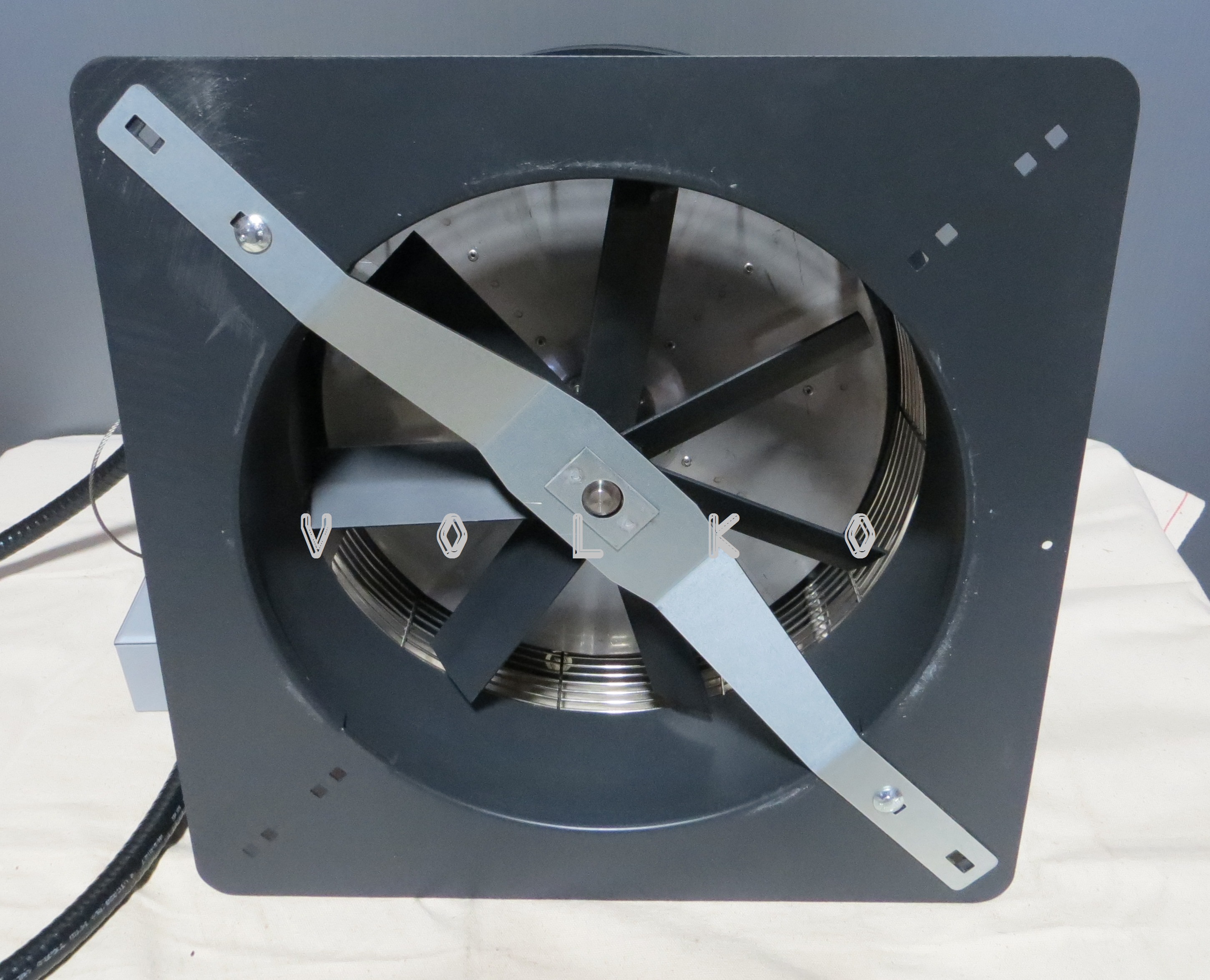

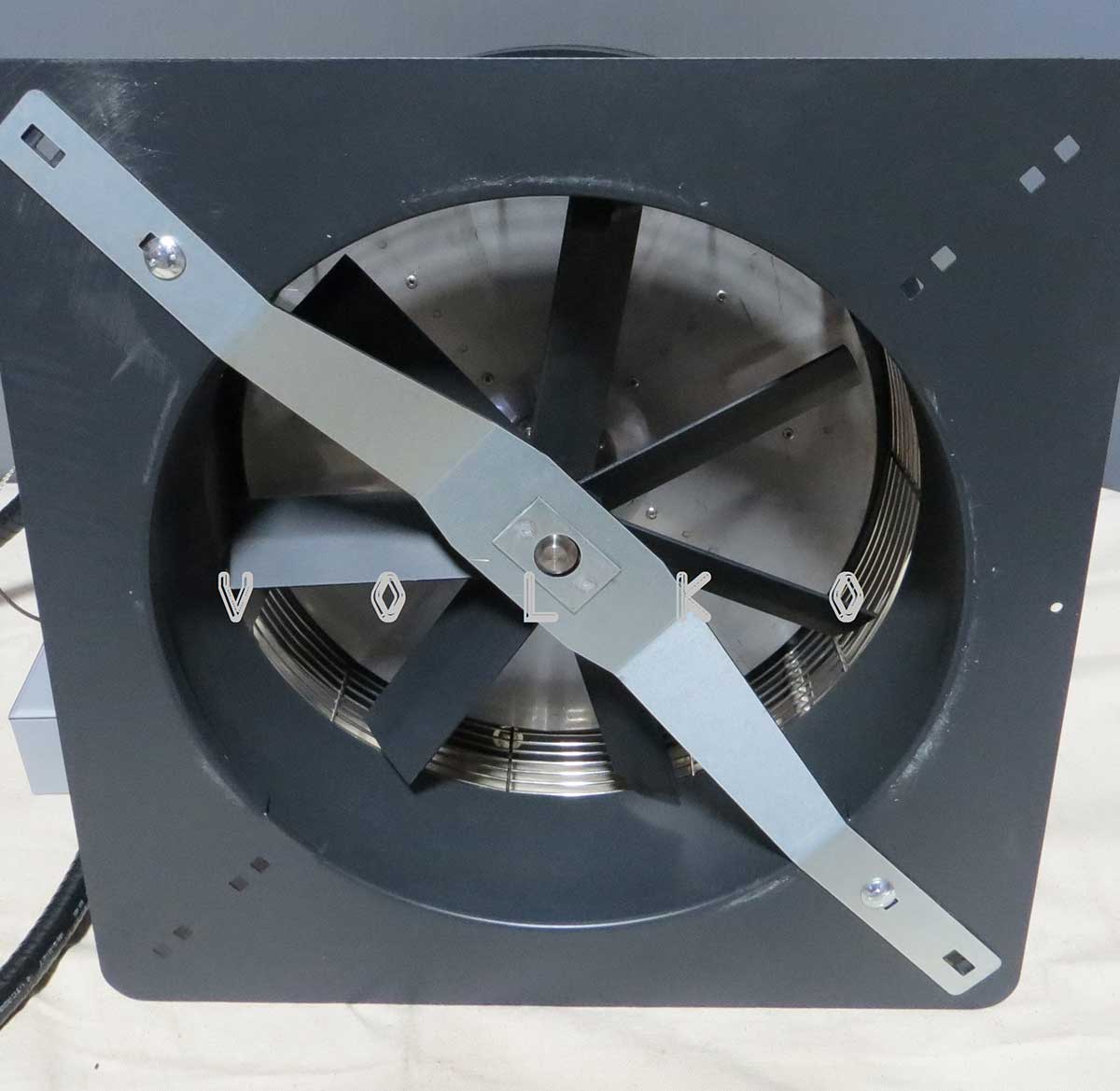

  Pictures show galvanized shipping bracket attached at bottom of fan base.
Bracket must be removed prior to installation.

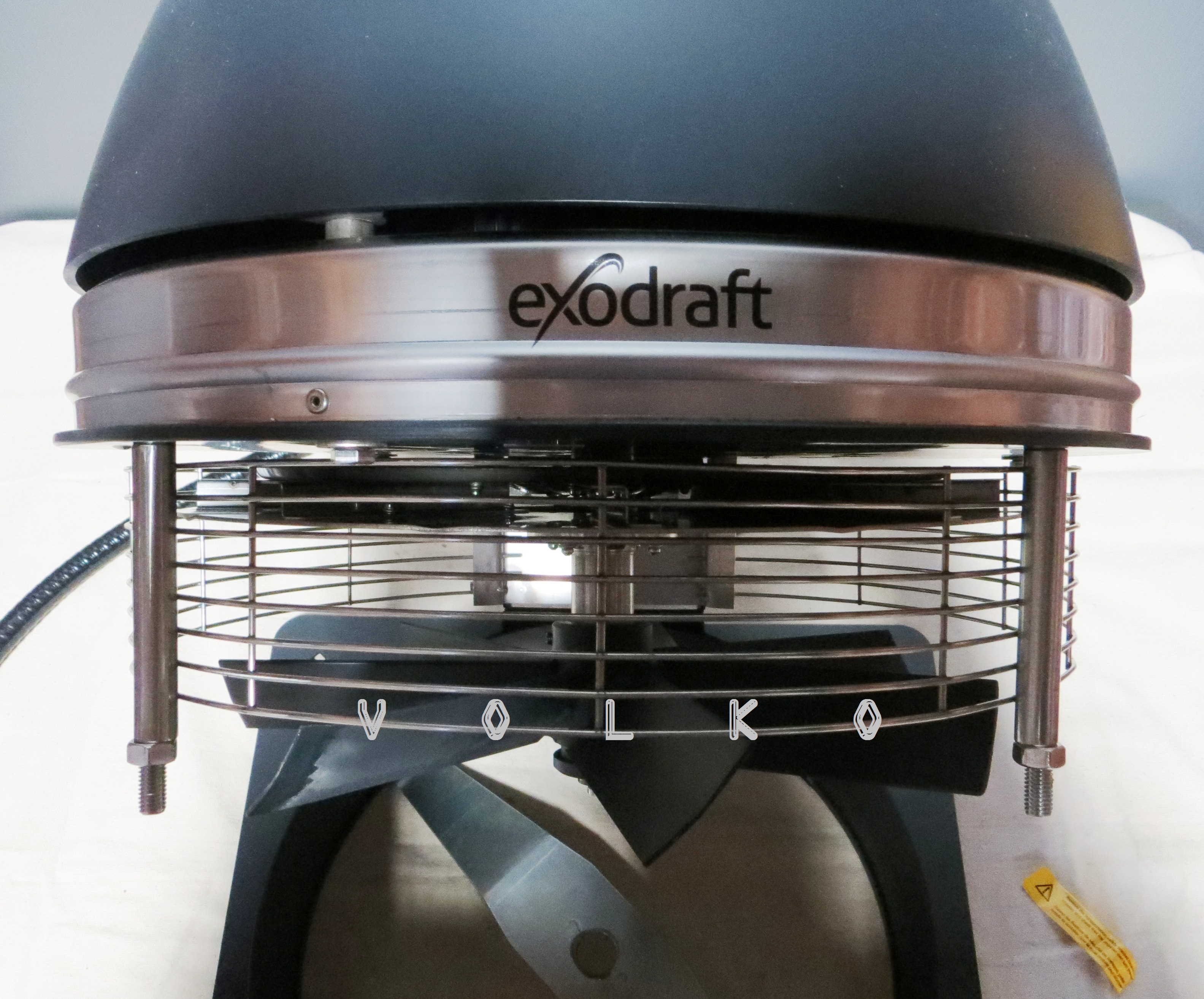

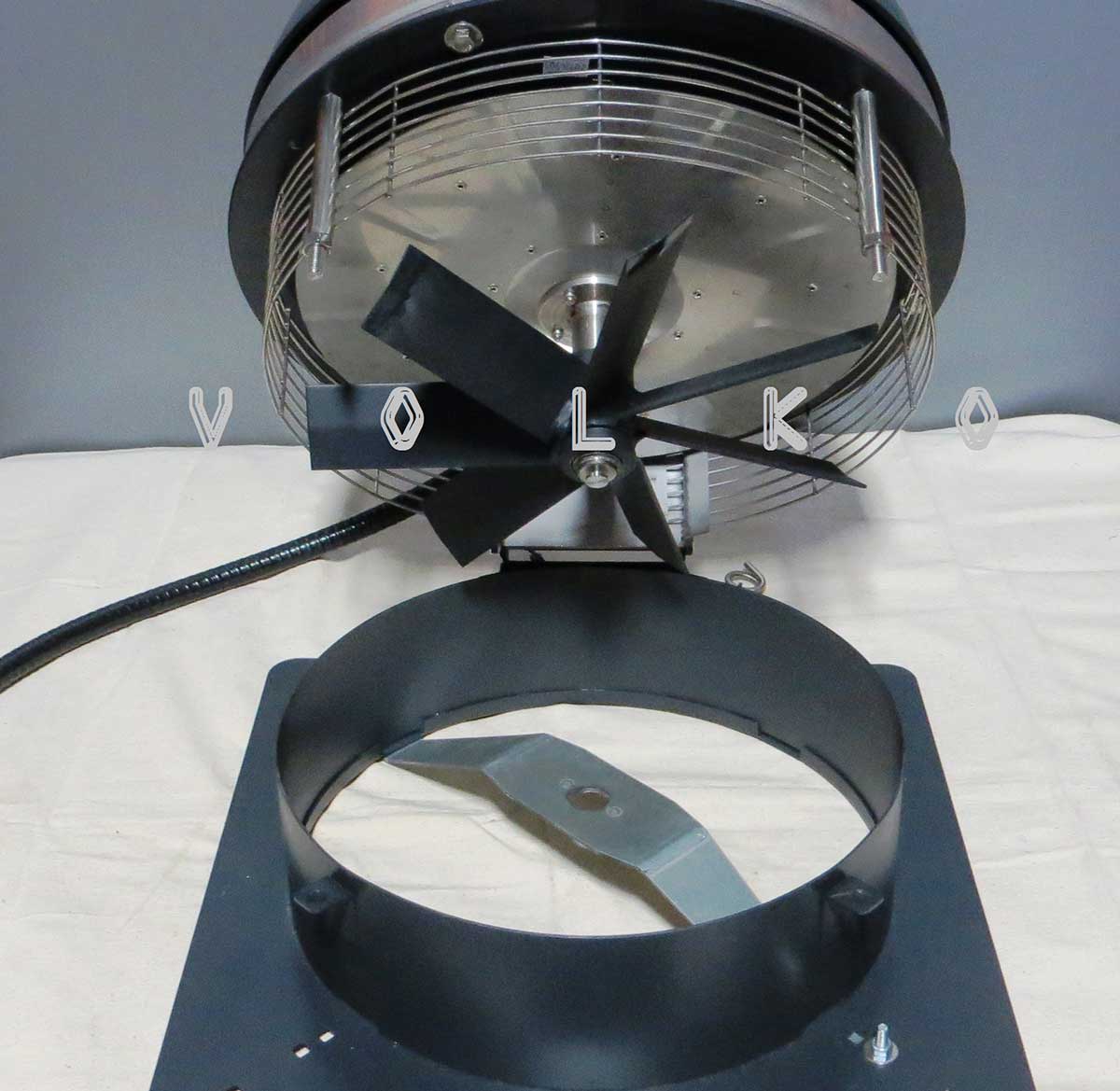

  Split motor shaft to
handle 1000+ degrees***

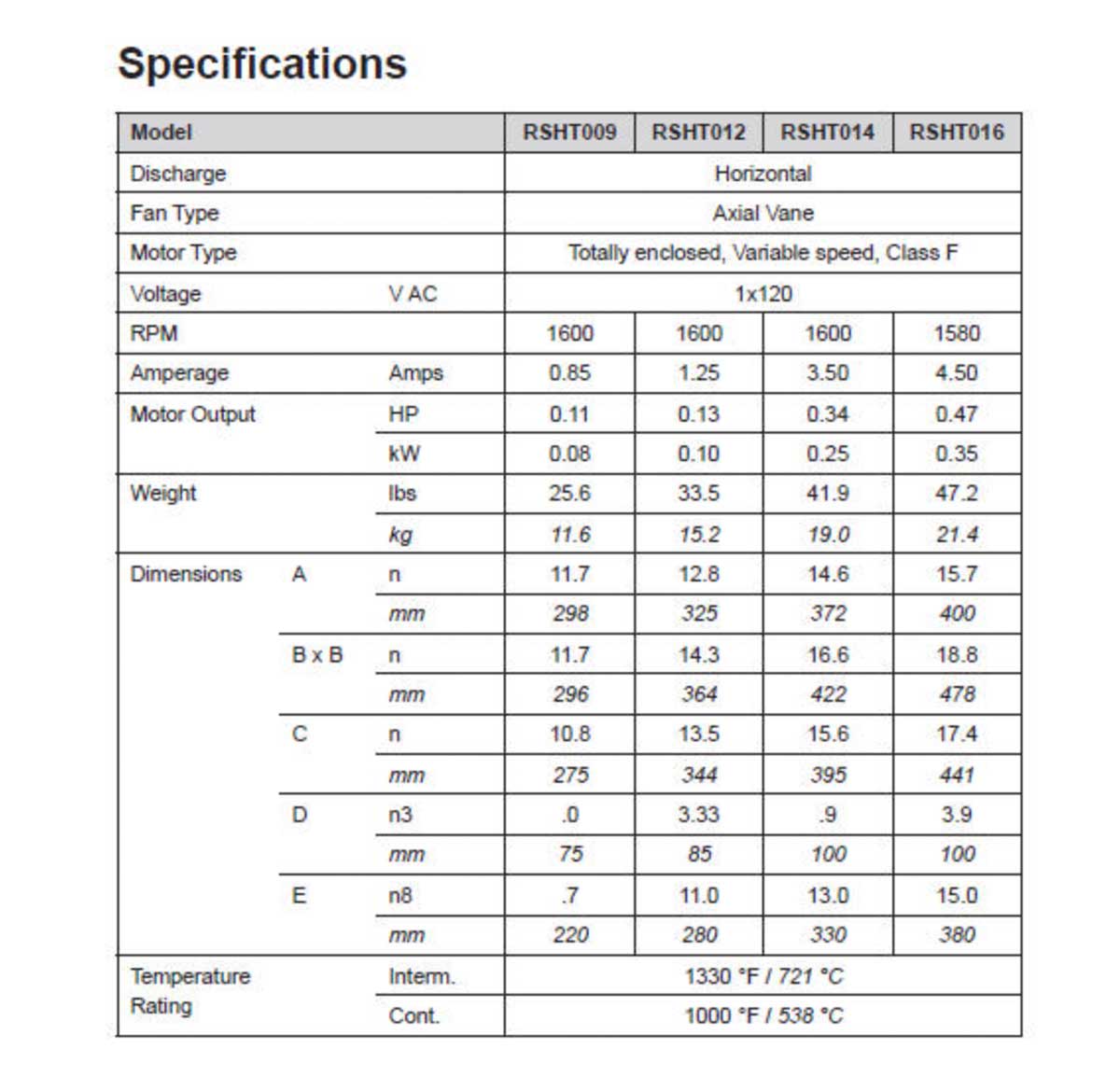

Fan Model Part Number
RSHT 009 102.0299.1200
RSHT 012 102.0499.1200
RSHT 014 102.0699.1200
RSHT 016 102.0899.1200
Quick Facts:
  • Quiet Operation
  • Two year factory warranty; 10 year corrosion perforation warranty
  • Split capacitor, totally enclosed. Class F insulated, IP54 Protection Class. Sealed ball bearings. Variable Speed. Thermal overload protection.
  • Easy, no-mess installation
  • Use for wood, pellet or coal appliances
  • The compact design of the fan makes it barely visible from ground level. However, the fan may be recessed or hidden behind chimney top enclosure such as copper caps, shrouds, cupolas, etc.
  • Available in four sizes.

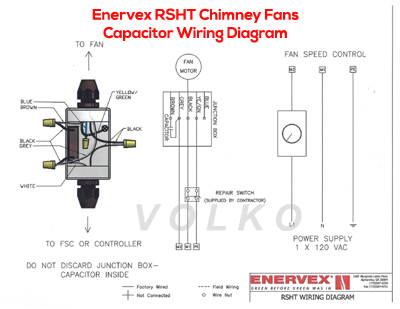

Enervex RSHT fan wiring diagram








Check out our comparison page here for a side by side comparison of RS and RSHT fans.

Enervex Chimney Fans


Enervex?... but my new fan says Exodraft.
Exhausto is now Exodraft, distributed as Enervex.
Read More...
Enervex Fans... draft solutions for kitchen and pizza oven exhaust.

Please call 800 685 8263 or email us (info@volko.com) for prices
