Enervex Damper System
 |
MFD Mechanical Fireplace
Damper For Gas ONLY
Have a gas fireplace with an Enervex fan?...
Add an MFD.A chimney top mounted automated damper for use with gas fireplaces and
model RS Chimney Fan. The MFD prevents excess heat from escaping through
the chimney when the fireplace is not in use. The ultra low profile MFD
comes equipped with an actuator that is interlocked to the ADC 100 so it
only opens when the fireplace is in use and draft is proven.
MFD can be purchased separately.
RS Chimney Fan must be present
Electronic Log Set must be present
ADC100 or ADC150 must be installed |
IntelliDraft™ - for
Fireplace Safety and Energy Savings
For Gas ONLY
RS Chimney Fan - ADC150 Control - MFD Damper
|
 |
The environmentally friendly IntelliDraft quietly maintains safe and
proper draft for the fireplace while protecting a home from dangerous
chimney downdraft and fireplace spillage and saving energy.
The IntelliDraft is the first completely automated venting control
system for use with gas fireplaces and is ideal for multifamily
buildings and single-family dwellings alike. It assures safe operating
conditions for a gas fireplace and other gas-fired, decorative
appliances. It also saves energy and eliminates unnecessary emissions
making it a true GREEN solution.
Maintaining a proper and safe draft condition for the fireplace and the
room providing it air for combustion are big challenges in today's tight
construction. IntelliDraft is designed specifically to meet these needs.
***Chimney is closed when the fireplace is not used
***The draft is never excessive which saves fuel
***Perfect operating conditions eliminate unnecessary carbon emissions
And all the user has to do is flip a switch! |
|
 |
IntelliDraft™ - How It Works
An elegant - and yet very simple – venting solution. The
IntelliDraft is easy to install and the connection of
the components is very simple. And all the components,
except for a switch, stay out of sight. The

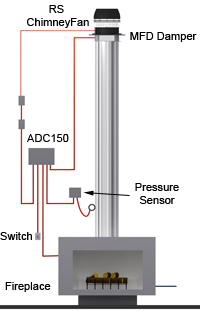

illustration to the left shows the very simple set up.
The IntelliDraft connects a draft and safety controller,
the ADC150 and its pressure sensor, to an RS chimney
fan, the MFD chimney damper and the fireplace’s gas
valve.
When the user wants to turn on the fireplace – typically
using a wall switch – the controller signals the
mechanical chimney damper to open. When the damper is
open, the controller automatically ramps up the chimney
fan speed until the draft set-point has been reached and
the integrated draft protection switch closes.
At this point, the controller allows the fireplace to
fire by opening the gas valve. During operation of the
fireplace the control continues to monitor the draft and
will maintain the proper draft set-point by modulating
the chimney fan speed whenever needed.
When the user turns the fireplace or appliance off, the
control leaves the damper open until all residual
combustion products have been exhausted out of the
building by the chimney fan; then the control
discontinues chimney fan operation and closes the
damper.
If for any reason the draft set-point can’t be
maintained during operation, the controller will
completely shut down the fireplace or appliance
operation. |
EcoDamper
System Type-G
For Gas ONLY

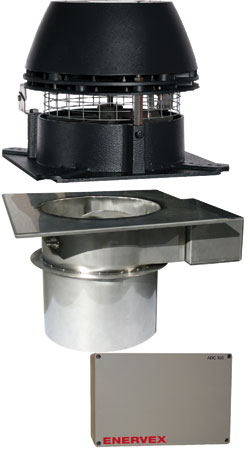

RS Chimney Fan - ADC100 Control
- MFD Damper
|
 |
The EcoDamper system is an energy-friendly draft control and safety
monitoring system for gas-fired fireplaces and similar decorative gas
appliances.
The system is designed to maintain safe and proper minimum draft
required in the chimney while protecting the fireplace from dangerous
chimney downdraft and fireplace spillage, two common issues. The system
automatically shuts down the fireplace gas supply if unsafe conditions –
often caused by “building depressurization” – occur. The product also
closes off the chimney when the fireplace is not being used, saving
energy and meeting the requirements of new, strict energy codes.
And all the user has to do is flip a switch! There are only five
components: An RS Chimney Fan, an MDF Mechanical Fireplace Damper, an
ADC100 Draft and Damper Control, a Pressure Sensor and a Chimney
Pressure Probe.
The EcoDamper system addresses all the relevant safety and
energy-efficiency concerns in one cost-effective, code-compliant system.
Added to a gas fireplace as a retrofit or in a new building project, the
easy-to-install EcoDamper suite provides a completely safe gas appliance
system:
|
• |
Downdraft protection.
High winds outdoors can cause downdraft in the chimney, but the
mechanically draft is more resistant than a natural draft
system. |
|
• |
Spillage elimination.
Depressurization in rooms with fireplaces can cause spillage,
but EcoDamper's safety system will close the supply of gas, if
the spillage is persistent. |
|
• |
Automatic shutdown.
In the event that a safe draft condition cannot be maintained,
the ADC100 control shuts down the gas supply for the fireplace. |
|
• |
Energy savings.
At the same time, EcoDamper saves energy and meets energy codes
by automatically closing off the chimney when the fireplace is
not being used. |
|
|
 |
EcoDamper™ - How
It Works
An elegant - and yet very simple – venting solution. The EcoDamper
system is easy to install and the connection of the components is very
simple. And all the components, except for a switch, stay out of sight.
The illustration to the left shows the very simple set up.
The EcoDamper connects a draft and safety controller, the ADC100 and its
pressure sensor, to an RS chimney fan, the MFD chimney damper and the
fireplace’s gas valve.
When the user wants to turn on the fireplace – typically using a wall
switch – the controller signals the mechanical chimney damper to open.
When the damper is open, the controller automatically ramps up the
chimney fan speed up to the pre-set speed which closes the integrated
draft protection switch
At this point, the controller allows the fireplace to fire by opening
the gas valve.
When the user turns the fireplace or appliance off, the control leaves
the damper open until all residual combustion products have been
exhausted out of the fireplace and chimney by the chimney fan; then the
control discontinues chimney fan operation and closes the damper.
If for any reason the adjustable draft set-point can’t be maintained
during operation, the controller will completely shut down the fireplace
or appliance operation. |
Enervex?... but
my new fan says Exodraft.
Exhausto is now Exodraft, distributed as Enervex.
