Exhausto / Exodraft / Enervex RS, GSV& RSV Fan Parts
Motors, Axial Vanes, Impellers & Capacitors
TP-211 is a Thermal Protection Code… it is not a part number for a motor.
TP indicates a motors Thermal Protection.
TP211 – Indicates protection against both rapid and slow overload.
When a motor’s heat rises too high, the thermal protector turns off electricity.
This stops the motor from overheating and catching on fire. Thermal protectors are placed internally inside the motor.
IE… This fan motor is an Enervex / Exhausto
ME# 1200795 V4 Motor. (RES1200795)
Enervex / Exhausto Fan Motor Identification
If the Enervex / Exhausto fan model number, found on the tag on top of the fan housing, is not legible an ID tag is also located on the motor body.
ID an Enervex / Exhausto fan motor is by the ME #’s… last two are alpha-numeric.
We sell all Enervex fans, controls, and parts. Click below for Product Information and Installation Manuals.
TP-211 is a Thermal Protection Code… it is not a part number for a motor.
TP indicates a motors Thermal Protection.
TP211 – Indicates protection against both rapid and slow overload.
When a motor’s heat rises too high, the thermal protector turns off electricity.
This stops the motor from overheating and catching on fire. Thermal protectors are placed internally inside the motor.
Enervex Motor Replacement PDFs
Direct links to Enervex for....
Part Identification
Prior to 2012 all fans and parts were identified as Exhausto, made in Denmark.
Exhausto is now Exodraft, distributed as Enervex. Name has changed… parts are the same.
| Enervex Fan RSV / GSV | Motor Type | Motor Part Number | Fan Blade Type | Fan Blade Part Number | Capacitor Size | Capacitor Part Number |
|---|---|---|---|---|---|---|
| RS9 | E4 | RES1200330 # 651.0501.1200 | Axial | RES1100222 # 601.0200.0010 | 4 MFD | RES2000958 # 601.0200.0064 |
| RS12 | G4 | RES1200265 # 651.0502.1200 | Axial | RES1100214 # 601.0400.0010 | 6 MFD | RES2000853 # 601.0400.0064 |
| RS14 | J4 | RES1200284 # 651.0503.1200 | Axial | RES1105008 # 601.0600.0010 | 12 MFD | RES2000842 # 604.0400.0064 |
| RS16 | T4 | RES1200272 # 651.0505.1200 | Axial | RES1100026 # 601.0800.0010 | 25 MFD | RES2000816 # 601.0800.0064 |
| RSHT9 | Split Shaft | # 652.0501.1200 | Axial | # 602.0200.0010 | 10 MFD | # 602.0200.0064 |
| RSHT12 | Split Shaft | # 652.0502.1200 | Axial | # 602.0400.0010 | 12 MFD | # 604.0400.0064 |
| RSHT14 | Split Shaft | # 652.0503.1200 | Axial | # 602.0600.0010 | 25 MFD | # 601.0800.0064 |
| RSHT16 | Split Shaft | # 652.0504.1200 | Axial | # 602.0800.0010 | 35 MFD | # 602.0800.0064 |
| RSV / GSV9 | E4 | RES1200330 # 651.0501.1200 | Axial | RES1100263 # 604.0200.0010 | 4 MFD | RES2000958 # 601.0200.0064 |
| RSV / GSV12 | J4 | RES1200284 # 651.0503.1200 | Axial | RES1105402 # 604.0400.0010 | 12 MFD | RES2000842 # 604.0400.0064 |
| RSV / GSV14 | Q4 | RES1200329 # 651.0504.1200 | Axial | RES1100159 # 604.0600.0010 | 16 MFD | RES2000959 # 604.0600.0064 |
| RSV / GSV16 | V4 | RES1200795 # 650.0503.1200 | Axial | RES1100704 # 604.0800.0010 | 30 MFD | RES2000957 # 604.0800.0064 |
| GSV16 (Before 2009) | V4 | RES1200297 Disc. | Axial | DISCONTINUED | N/A | Replace w/ (19mm) V4 Motor RES1200795 |
| RSV16 (Before 2009) | V4 | RES1200297 Disc. | Axial | DISCONTINUED | N/A | Replace w/ (19mm) V4 Motor RES1200795 |
| RSV / GSV200 | J4 | RES1200284 # 651.0503.1200 | Centrifugal | RES1100079 # 605.0400.0010 | 12 MFD | RES2000842 |
| RSV / GSV250 | Q4 | RES1200329 # 651.0504.1200 | Centrifugal | RES1100194 # 605.0600.0010 | 16 MFD | RES2000959 |
| GSV315 | V4 | RES1200795 # 650.0503.1200 | Centrifugal | RES1100725 # 633.0800.0010 | 30 MFD | RES2000957 |
| GSV315 | V4 | RES1200795 # 650.0503.1200 | Centrifugal | RES1100725 # 633.0800.0010 | 30 MFD | RES2000957 |
| RSV315 | V4 | RES1200795 # 650.0503.1200 | Centrifugal | RES1100709 # 605.0800.0010 | 30 MFD | RES2000957 |
| GSV315 Before 2009 | V4 | RES1200297 Disc. | Centrifugal | DISCONTINUED | N/A | Replace w/ (19mm) V4 Motor RES1200795 |
| RSV315 Before 2009 | V4 | RES1200297 Disc. | Centrifugal | DISCONTINUED | N/A | Replace w/ (19mm) V4 Motor RES1200795 |
| BESB250 | V4 (19mm) | RES1200974 # 650.0504.1200 | Centrifugal | RES0301029 # 699.0200.0008 | 30 MFD | RES2000957 |
*** In 2009 V4 motors have had a shaft change from 14mm (1/2″) shaft to the newer 19mm (3/4) shaft….
Check motor tag for “ME” part number…. it is recommended that the older V4 #1200297 motor be replaced with a new V4 motor #1200795 and include corresponding fan blade and capacitor.
| Enervex Fan RSV / GSV | ABB Motor Type | ABB Motor Part Number | Fan Blade Type | Fan Blade Part Number |
|---|---|---|---|---|
| BESB 315 | 1 HP | RES1200579 Disc. | Centrifugal | DISCONTINUED |
| BESB 315 | 1 HP | RES1200579 S # 655.0501.2200 | Centrifugal | RES0300720 # 699.0400.0008 |
| RSV / GSV400 | 1 HP | RES1200457 Disc. | Centrifugal | RES1100196 Disc. |
| RSV / GSV400 | 1 HP | RES1200803 # 654.0401.2200 | Centrifugal | RES1100811 # 605.1000.0010 |
| RSV / GSV450 | 2 HP | RES1200788 # 654.0402.2200 | Centrifugal | RES1105607 # 605.1200.0010 |
*** In 2009 1HP motors have had a shaft change from 14mm (1/2″) shaft to the newer 19mm (3/4) shaft….
Check motor shaft size…. it is recommended that the older 14mm 1HP motor be replaced with a new 19mm 1HP motor #1200803 and include corresponding impeller.
Stocking Dealer - Knowledgeable Staff - Expedited Shipping Available
Please call 800 685 8263 for prices
We only provide genuine Exhausto Exodraft Enervex replacement parts.
Enervex / Exhausto / Exodraft Fan Identification
ID an Enervex fan by the first 6 alpha-numeric digits located on the tag.
IE… This fan is an Enervex GSV012 or GSV 12.
Exodraft fans are made in Denmark, 115 – 120v fans are provided for North America
and distributed as Enervex fans. Read More…
The ID tag, located on the top plate for GSV/RSV fans, can become illegible from age or after a high heat event.
To determine the correct Enervex fan model and size… confirm if it has an axial vane or backward curved impeller… and reference a few housing measurements against an Enervex fan spec chart.
This fan (left) was off a pizza oven from a restaurant.
***** Commercial kitchen would require a GSV series fan.
***** Axial vane would narrow it to 1 of 4 fans… GSV009 thru GSV016.
***** 15″ measured off the housing makes this a GSV012
The clam shell measurement of about 15″ was used against the fan model chart located here…
www.enervexfansource.com/pizzaovenfans.htm
B x B chart measurement of 15.37″ confirmed this to be a GSV012
Shaft Extensions
Start Capacitors
Fan start capacitors are located in the Electrical Junction Box
It is recommended to also change the start capacitor as part of a motor replacement.
Motor Mount Flange
RES1100693 GSV 315
Capacitor Wiring Diagram
Download Here
Fan Blade Identification
Axial Vane
Also called:
Impeller or Prop Blade
Fan Blade Identification
Centrifugal
Also called:
Scoop Wheel or Back Curved Impeller
Cooling Vane
Motor Change???.. inspect the cooling vane.
An unbalanced, warped or missing cooling vane could significantly lessen the lifespan of the motor / fan.
Used on Centrifugal Blades and with Axial Vanes on GSV / RSV fans
| Enervex Fan | Cooling Vane | Cooling Vane Part Number |
|---|---|---|
| GSV9 | 8” ( 7 7/8”) | 604.0200.0013 RES1100594 |
| GSV12 | 10” ( 9 13/16”) | 604.0400.0013 RES1100593 |
| GSV14 | 13” ( 12 5/8”) | 604.0600.0013 RES1100595 |
| GSV16 | 16” ( 15") | 604.0800.0013 RES1102658 |
| GSV200 | N/A | Attached |
| GSV250 | N/A | Attached |
| GSV315 | N/A | Attached |

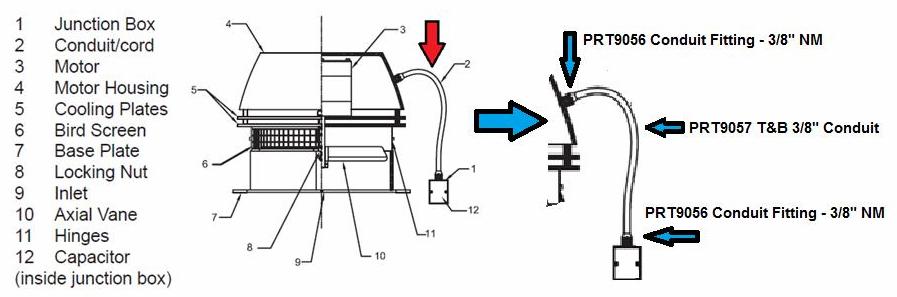

Electrical Wire / Harness Replacement for RS GSV RSV Exhausto / Enervex Chimney Fans
Kit Includes : Conduit, Cord, Fittings & Capacitor
- 4 FT PRT9057 3/8″ Black XTRAFLEX Conduit
- 5 FT PRT3084 Silicone Cased 4-Wire Harness ( CORD )
- 2 PC PRT9056 3/8″ Conduit Fittings
- 1 PC Capacitor ( Sized by Fan Model )
All Exhausto / Enervex RS Chimney Fans have capacitor start motors.
Capacitor must be installed for proper fan function.
***Junction box not included.
We only provide genuine Exhausto Exodraft Enervex replacement parts.
Capacitor Wiring Diagram
Download Here| Fan Model | RS9 GSV9 RSV9 | RS12 | RS14 GSV12 RSV12 GSV200 RSV200 | RS16 | GSV14 RSV14 GSV250 RSV250 | GSV16 RSV16 GSV315 RSV315 |
|---|---|---|---|---|---|---|
Motor Type | 1200330 E4 651.0501.1200 | 1200265 G4 651.0502.1200 | 1200284 J4 651.0503.1200 | 1200272 T4 651.0505.1200 | 1200329 Q4 651.0504.1200 | 1200795 V4 650.0503.1200 |
Required Capacitor | 4 MFD | 6 MFD | 12 MFD | 25 MFD | 16 MFD | 30 MFD |
Call to order - 800 685 8263
Enervex?... but my new fan says Exodraft.
Exhausto is now Exodraft, distributed as Enervex.
Enervex Fans… draft solutions for kitchen and pizza oven exhaust.
