ENERVEX
GSV Grease Fans & Kitchen
Exhaust
Enervex GSV fan for installation at the chimney termination
point, vertically or for side-wall venting. Assures a negative
pressure in the entire chimney or stack system.
Discharges vertically (horizontally if side-wall venting) at
a high velocity.
The fan housing is hinged and the top can be opened for easy
service and access to stack.
The GSV Fan is mounted on top of the chimney. It pulls exhaust and/or
grease from pizza ovens, BBQ’s, fireplaces, etc,With the variable speed feature, ENERVEX fans are designed to be
part of present and future energy efficient kitchen ventilation systems.
This feature also allows our fan to operate continuously at temperatures
of up to 575 ° F (300 ° C)
Stocking Dealer - Knowledgeable Staff -
Expedited Shipping Available |
| |
 |
|
|
 |
|
|
Fan Model |
Part Number |
|
GSV 200 |
133.0400.1200 |
| GSV 250 |
133.0600.1200 |
| GSV 315 |
133.0800.1200 |
| GSV 400 |
133.1000.1200 |
| GSV 450 |
133.1200.2200 |

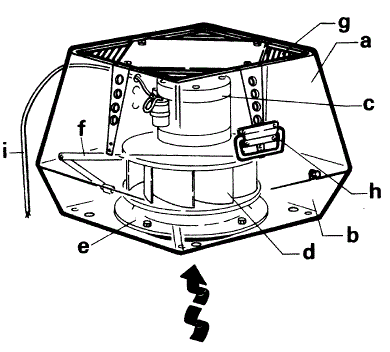

Fan Part Description
a. Top Section
b. Bottom Section
c. Motor
d. Centrifugal impeller
e. Inlet for impeller
f. Locking hinge
g. Bird Screen
h. Carrying handle
i. Wiring conduit |
|
GSV 200-450
Capacity Chart |
In restaurant applications, GSV grease fans are
used to vent broilers, BBQ, Pizza Ovens, fryers and other cooking
appliances. With direct drive and variable speed they offer great energy
savings and savings on operations and maintenance as there are not belts
that can break.
In residential applications, GSV and BESF can vent
kitchen hoods and pizza ovens. They can be used as “remote fans” that eliminate
ventilation and motor noise in a kitchen while still providing maximum
ventilation. The fans have variable speed and can be interlocked with most
kitchen hoods that have variable speed control ability.
ENERVEX's grease fan can be used with
wood and gas fired BBQ’s, pizza ovens, fireplaces and more.
|
Material |
Motor |
Listings |
Optional Equipment |
|
Exhausto Grease fans housing is made of cast aluminum with a thickness of 3/16"
and is corrosion resistant. One coat of grey hammer-paint finish is applied.

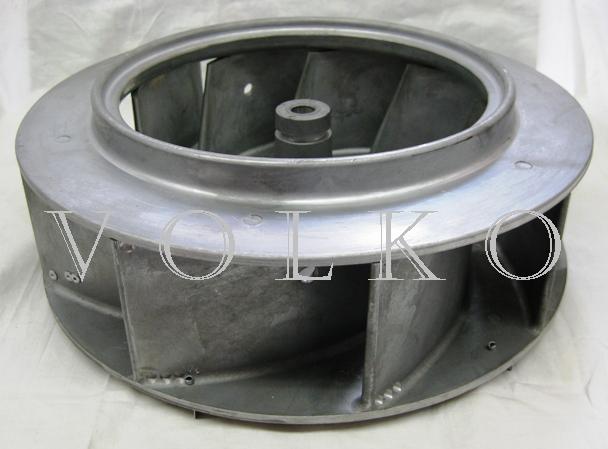

Backwards curved impeller of cast aluminum.
Dynamically and statically balanced with permanently
attached balancing weights.
|
GSV 250-315: Single phase, split capacitor, totally
enclosed, Class H insulated, IP54 Protection Class.
Sealed ball bearings. Variable Speed. Thermal overload
protection.
GSV 400-450: Three phase totally enclosed TEFC motor, Class
F insulated. Sealed ball bearings. Variable Speed. Thermal overload
protection.
|
ETL listing #E109205550D
UL762-Standard for Power Roof Ventilators for restaurant
exhaust appliances.
ULC-S645-93-Standard for Power Roof
Ventilators for commercial and institutional
kitchen exhaust
systems.
|
5Amp or 8Amp Fan Speed Control
Gasket
Roof Curb
Variable Frequency Drive
|
|
Standard Equipment |
Approvals |
Warranty |
|
2"x4" or 4"x4" junction box
with cover and conduit
Bird Screen
|
CE Compliant
City of New York Department of Building
City of Los Angeles
The Commonwealth of Massachusetts (G1-1295-29)
|
2-year factory warranty on the entire Exhausto grease fans.
10-year warranty against corrosion perforation.
Manufactured at ISO9001 certified plant.
|
Common Accessories
|
ENERVEX
Fan Speed Control
FSC
Included with RS Series Fans |
 |
|
ENERVEX Fan Speed Control FSC is used in conjunction with all single-phased
ENERVEX chimney fans. The fan speed control is specially engineered to
provide variable speed control of split-capacitor motors. This control is
accomplished by reducing the line voltage to the motor thereby using only
the energy required to maintain the desired volume of air flow (fan speed).
Notice: The RSV 400 and 450 are 3x200-240VAC and cannot be controlled
with this kind of fan speed control |
Material
The steel chimney adapter is made of 16GA
304 stainless
steel. |
Downloadable PDF
Steel Chimney Adapter |
Warranty
2-year factory warranty |
ENERVEX

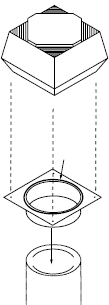

Steel Chimney Adapter is used when installing the chimney fan on the
top of a single, double or triple wall steel chimney.
The adapter is designed to
slide into the steel chimney for a tight fit. The outer diameter of
the collar is 1/8" smaller than the inner diameter of the steel
chimney and has a 5" deep collar. |
Need Exhausto fan parts... or a replacement motor for
an Exhausto fan?
 |
Is it Exhausto Exodraft or Enervex?
Exhausto is
now Exodraft, distributed as Enervex.
Read more...
Prior to 2012 all fans and parts were identified as Exhausto,
made in Denmark.
Name has changed... parts are the same.
Exhausto Part Identification.
We only supply genuine Exhausto fan motors, fan blades
and parts. |
 |
