Exhausto / Exodraft / Enervex RS, GSV& RSV Fan Parts
Motors, Axial Vanes, Impellers & Capacitors

IE... This fan motor is an Enervex / Exhausto

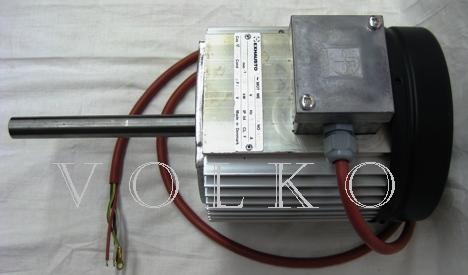

ME# 1200795 V4 Motor. ( RES1200795 )

TP-211 is a Thermal Protection Code… it is not a part number for a motor.
TP indicates a motors Thermal Protection.
TP211 – Indicates protection against both rapid and slow overload.

When a motor’s heat rises too high, the thermal protector turns off electricity.
This stops the motor from overheating and catching on fire. Thermal protectors are placed internally inside the motor.

Exhausto Exodraft Enervex Fan Motor. Replacement fan motor and parts. Replacement motors for RS 009 RS 012 RS 014 RS 016 GSV 009 GSV 012 GSV 014 GSV 016 GSV 250 GSV 315

Enervex / Exhausto Fan Motor Identification

If the Enervex / Exhausto fan model number, found on the tag on top of the fan housing, is not legible an ID tag is also located on the motor body.

ID an Enervex / Exhausto fan motor is by the ME #'s... last two are alpha-numeric.

We sell all Enervex fans, controls, and parts. Click below for Product Information and Installation Manuals.

Enervex Motor Replacement PDFs

RS Motor Replacement

GSV 400-450 Motor Replacement

GSV 009-016 Motor Replacement

Direct links to Enervex for....

Installation Manuals

Product Information


	Is it a GSV315 or RSV315? How to ID

Part Identification
Prior to 2012 all fans and parts were identified as Exhausto, made in Denmark.
Exhausto is now Exodraft, distributed as Enervex. Name has changed... parts are the same.

Enervex Fan RSV / GSV	Motor Type	Motor Part Number	Fan Blade Type	Fan Blade Part Number	Capacitor Size	Capacitor Part Number
RS9	E4	RES1200330 # 651.0501.1200	Axial	RES1100222 # 601.0200.0010	4 MFD	RES2000958 # 601.0200.0064
RS12	G4	RES1200265 # 651.0502.1200	Axial	RES1100214 # 601.0400.0010	6 MFD	RES2000853 # 601.0400.0064
RS14	J4	RES1200284 # 651.0503.1200	Axial	RES1105008 # 601.0600.0010	12 MFD	RES2000842 # 604.0400.0064
RS16	T4	RES1200272 # 651.0505.1200	Axial	RES1100026 # 601.0800.0010	25 MFD	RES2000816 # 601.0800.0064

RSHT9	Split Shaft	# 652.0501.1200	Axial	# 602.0200.0010	10 MFD	# 602.0200.0064
RSHT12	Split Shaft	# 652.0502.1200	Axial	# 602.0400.0010	12 MFD	# 604.0400.0064
RSHT14	Split Shaft	# 652.0503.1200	Axial	# 602.0600.0010	25 MFD	# 601.0800.0064
RSHT16	Split Shaft	# 652.0504.1200	Axial	# 602.0800.0010	35 MFD	# 602.0800.0064

RSV / GSV9	E4	RES1200330 # 651.0501.1200	Axial	RES1100263 # 604.0200.0010	4 MFD	RES2000958 # 601.0200.0064
RSV / GSV12	J4	RES1200284 # 651.0503.1200	Axial	RES1105402 # 604.0400.0010	12 MFD	RES2000842 # 604.0400.0064
RSV / GSV14	Q4	RES1200329 # 651.0504.1200	Axial	RES1100159 # 604.0600.0010	16 MFD	RES2000959 # 604.0600.0064
RSV / GSV16	V4	RES1200795 # 650.0503.1200	Axial	RES1100704 # 604.0800.0010	30 MFD	RES2000957 # 604.0800.0064
GSV16 Before 2009	V4	RES1200297 Disc.	Axial	DISCONTINUED	Replace w/ (19mm) V4 Motor RES1200795 with corresponding axial vane & capacitor
RSV16 Before 2009	V4	RES1200297 Disc.	Axial	DISCONTINUED

RSV / GSV200	J4	RES1200284 # 651.0503.1200	Centrifugal	RES1100079 # 605.0400.0010	12 MFD	RES2000842 # 604.0400.0064
RSV / GSV250	Q4	RES1200329 # 651.0504.1200	Centrifugal	RES1100194 # 605.0600.0010	16 MFD	RES2000959 # 604.0600.0064
GSV315	V4	RES1200795 # 650.0503.1200	Centrifugal	RES1100725 # 633.0800.0010	30 MFD	RES2000957 # 604.0800.0064
RSV315	V4	RES1200795 # 650.0503.1200	Centrifugal	RES1100709 # 605.0800.0010	30 MFD	RES2000957 # 604.0800.0064
GSV315 Before 2009	V4	RES1200297 Disc.	Centrifugal	DISCONTINUED	Replace w/ (19mm) V4 Motor RES1200795 with corresponding impeller & capacitor
RSV315 Before 2009	V4	RES1200297 Disc.	Centrifugal	DISCONTINUED

BESB250	V4 (19mm)	RES1200974 # 650.0504.1200	Centrifugal	RES0301029 # 699.0200.0008	30 MFD	RES2000957 # 604.0800.0064

*** In 2009 V4 motors have had a shaft change from 14mm (1/2") shaft to the newer 19mm (3/4) shaft....

Check motor tag for "ME" part number.... it is recommended that the older V4 #1200297 motor be replaced with a new V4 motor #1200795 and include corresponding fan blade and capacitor.

Enervex Fan RSV / GSV	ABB Motor Type	ABB Motor Part Number	ABB	Fan Blade Type	Fan Blade Part Number
BESB 315	1 HP	RES1200579 Disc.		Centrifugal	DISCONTINUED
BESB 315	1 HP	RES1200579 S # 655.0501.2200		Centrifugal	RES0300720 # 699.0400.0008
RSV / GSV400	1 HP	RES1200457 Disc.		Centrifugal	RES1100196 Disc.
RSV / GSV400	1 HP	RES1200803 # 654.0401.2200		Centrifugal	RES1100811 # 605.1000.0010

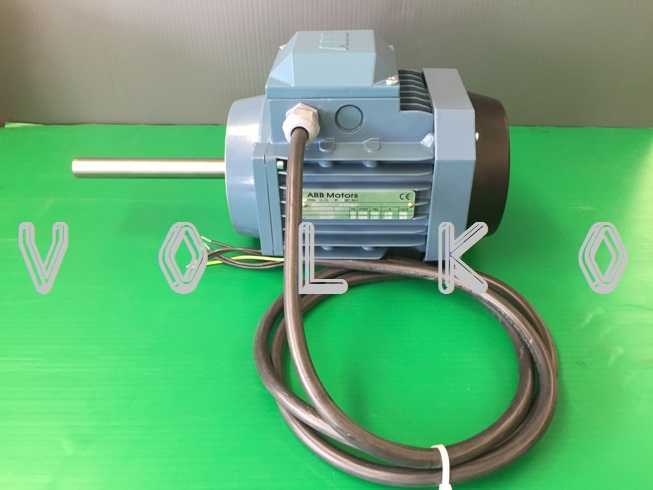

RSV / GSV450	2 HP	RES1200788 # 654.0402.2200		Centrifugal	RES1105607 # 605.1200.0010

*** In 2009 1HP motors have had a shaft change from 14mm (1/2") shaft to the newer 19mm (3/4) shaft....

Check motor shaft size.... it is recommended that the older 14mm 1HP motor be replaced with a new 19mm 1HP motor #1200803 and include corresponding impeller.

Stocking Dealer - Knowledgeable Staff - Expedited Shipping Available

Please call 800 685 8263 for prices
We only provide genuine Exhausto Exodraft Enervex replacement parts.

Enervex fan identification. Exhausto is now Enervex. Exodraft fans are made in Denmark, 115 - 120v fans are provided for North America and distributed as Enervex fans.

Enervex / Exhausto / Exodraft Fan Identification

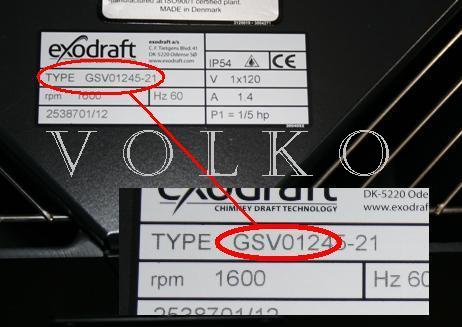

ID an Enervex fan by the first 6 alpha-numeric digits located on the tag.
IE... This fan is an Enervex GSV012 or GSV 12.

Exodraft fans are made in Denmark, 115 - 120v fans are provided for North America
and distributed as Enervex fans. Read More...

The ID tag, located on the top plate for GSV/RSV fans, can become illegible from age or after a high heat event.

To determine the correct Enervex fan model and size... confirm if it has an axial vane or backward curved impeller... and reference a few housing measurements against an Enervex fan spec chart.

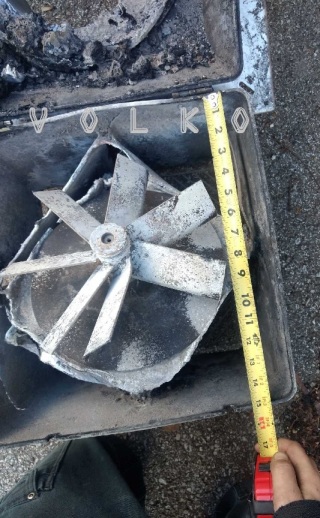

This fan (left) was off a pizza oven from a restaurant.

***** Commercial kitchen would require a GSV series fan.

***** Axial vane would narrow it to 1 of 4 fans... GSV009 thru GSV016.

***** 15" measured off the housing makes this a GSV012

The clam shell measurement of about 15" was used against the fan model chart located here...

www.enervexfansource.com/pizzaovenfans.htm

B x B chart measurement of 15.37" confirmed this to be a GSV012

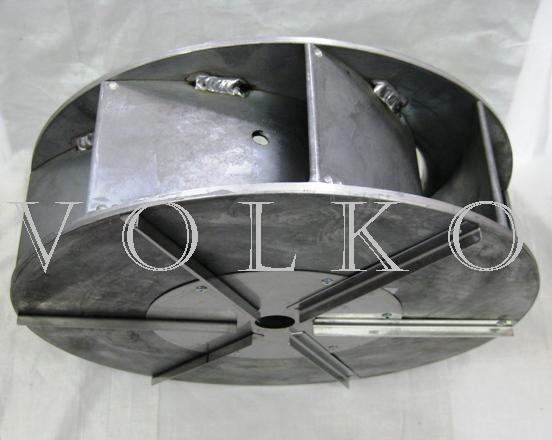

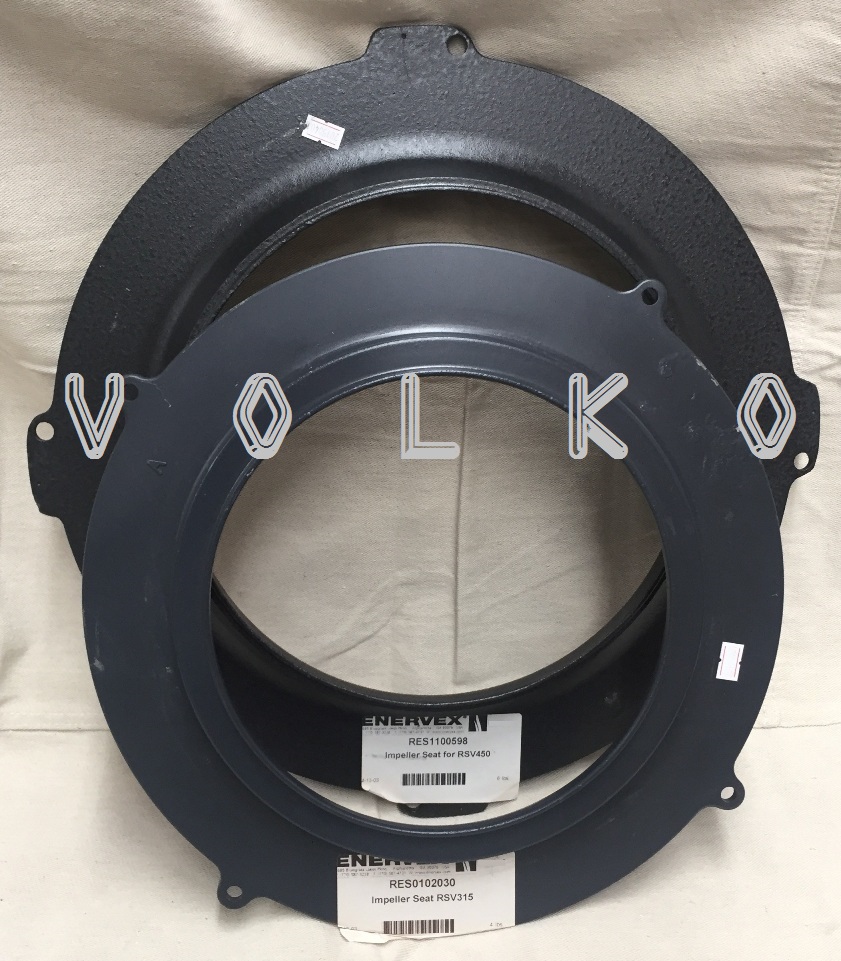

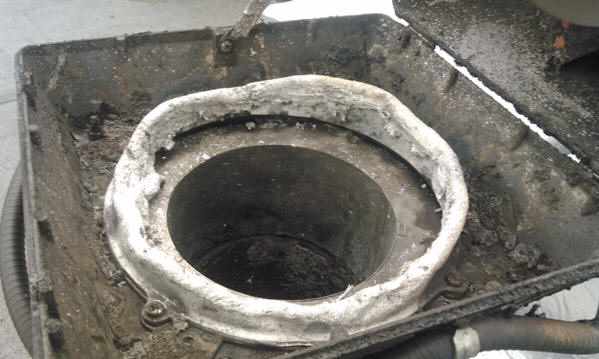

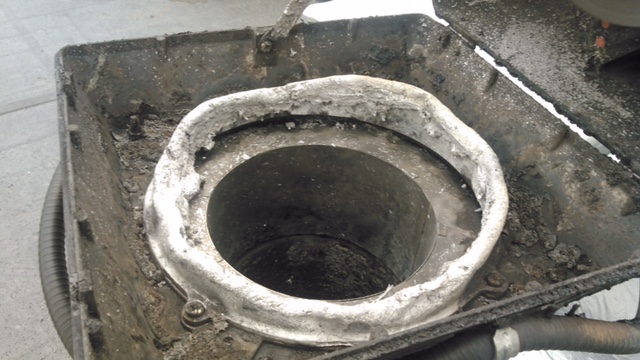

Fire in the hole!!!!.... This was an inlet collar.		Impeller Seats / Insert & Inlet Collars

Replacement Motor Mount for Enervex Exhausto Exodraft

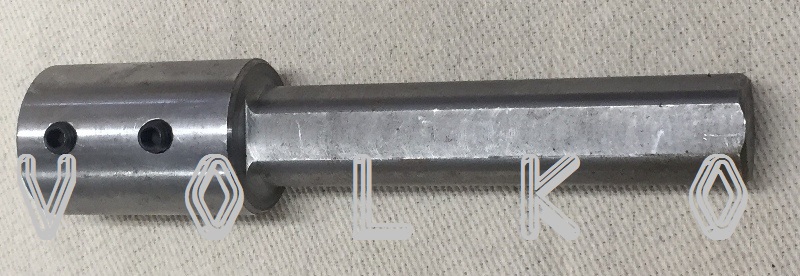

Replacement Shaft Extension for Enervex Exhausto Exodraft

Enervex Capacitors. Volko only provides genuine Exhausto Exodraft Enervex replacement parts.

Capacitor
Wiring Diagram

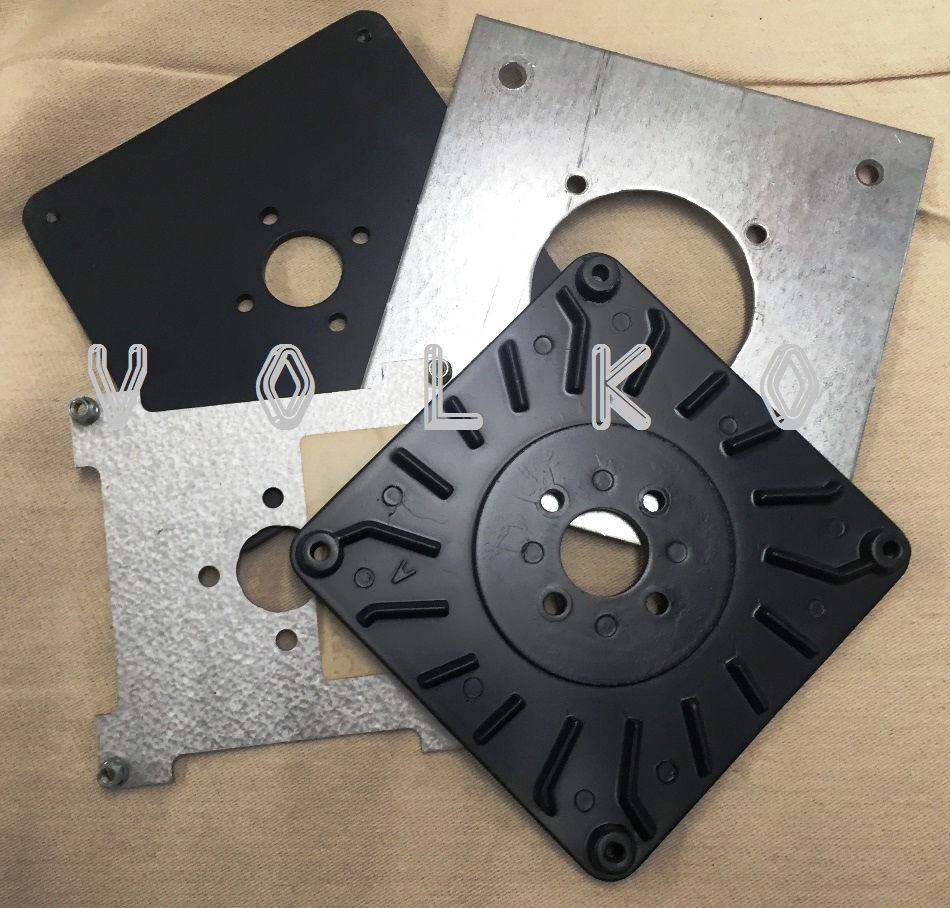

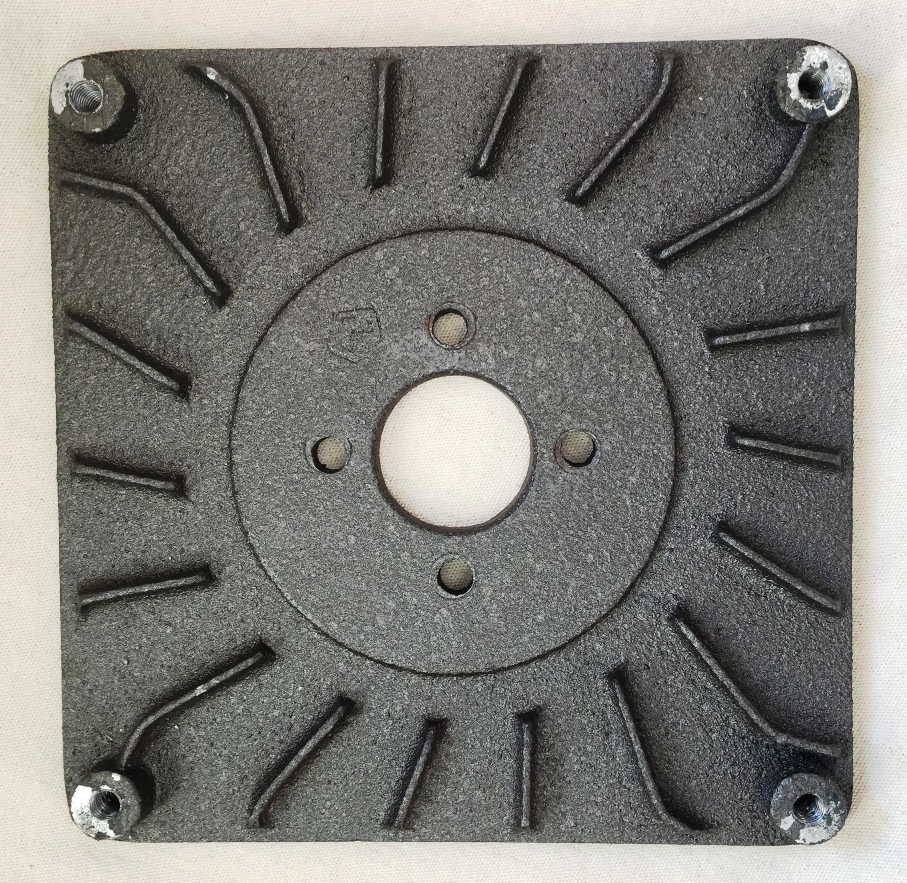

Motor Mount Flange

RES1100693
GSV 315

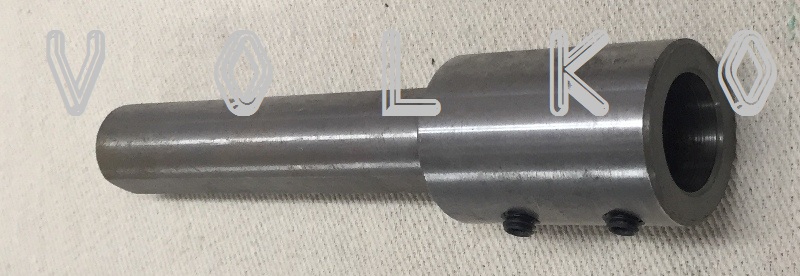

Shaft Extensions

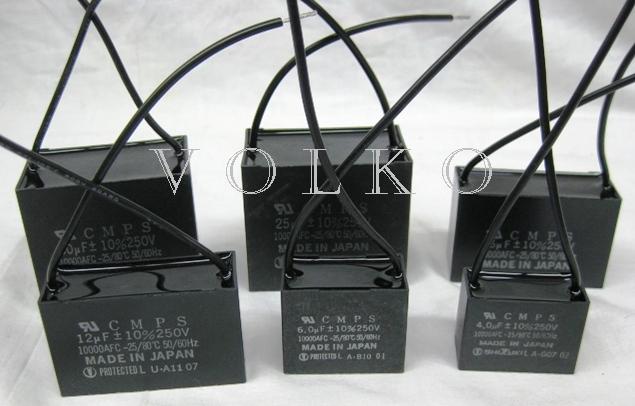

Start Capacitors

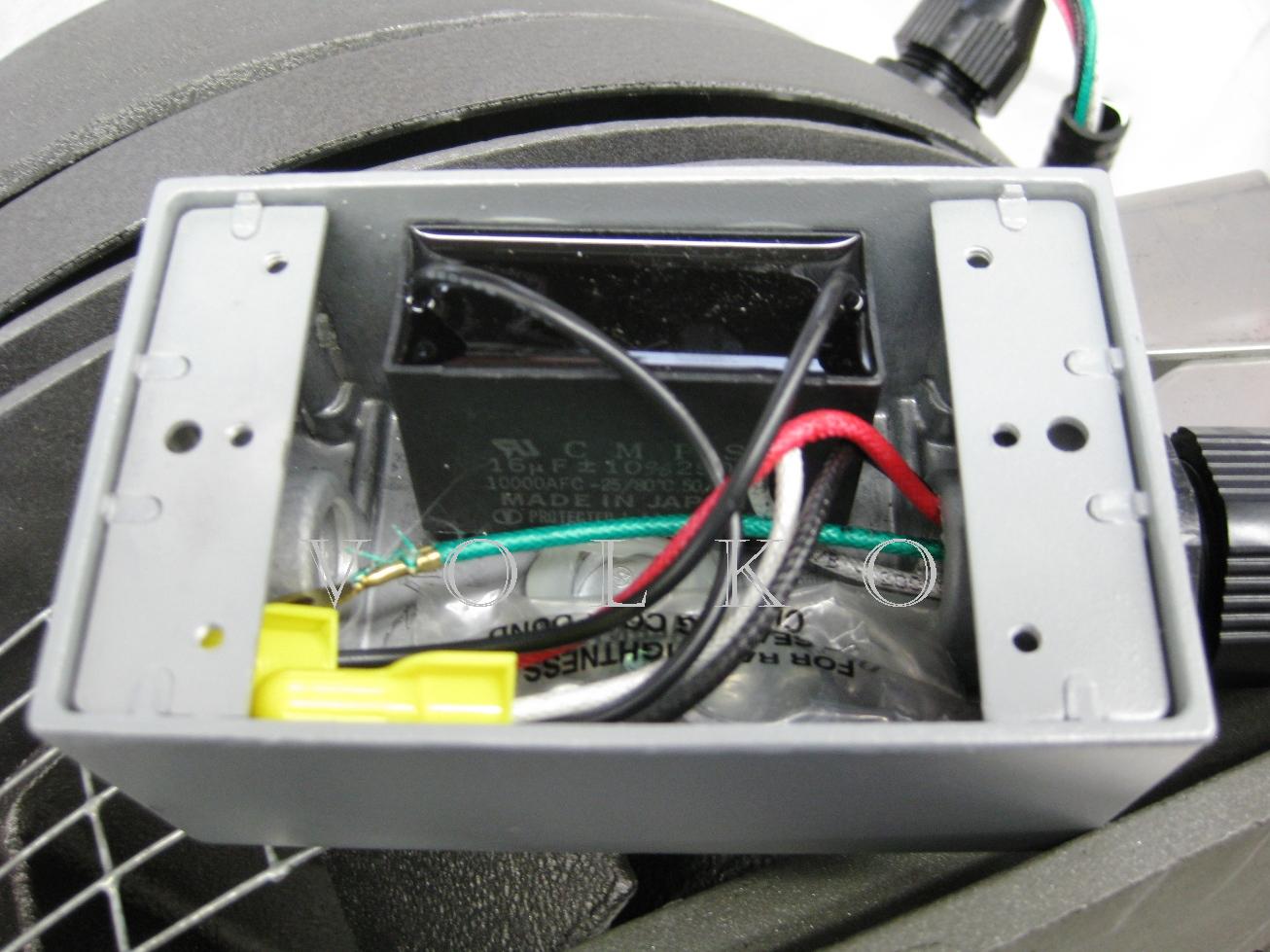

Fan start capacitors are located in the Electrical Junction Box

It is recommended to also change the start capacitor as part of a motor replacement.

Fan Blade Identification

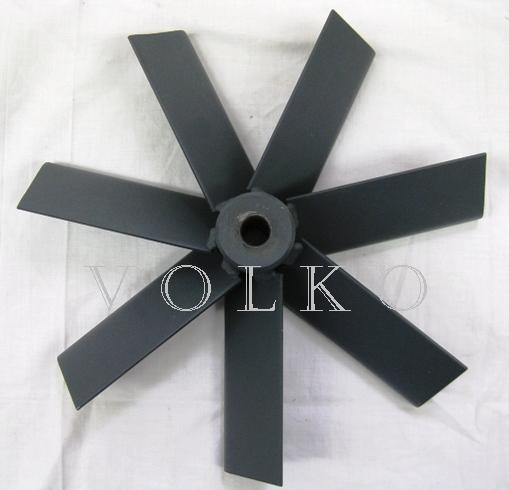

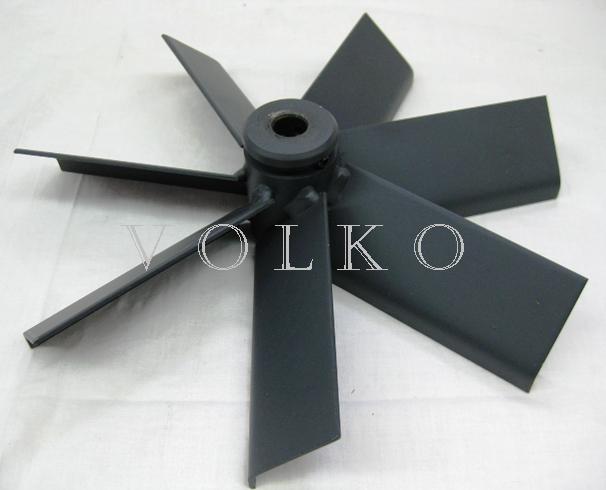

Axial Vane

Also called:
Impeller or Prop Blade

Fan Blade Identification

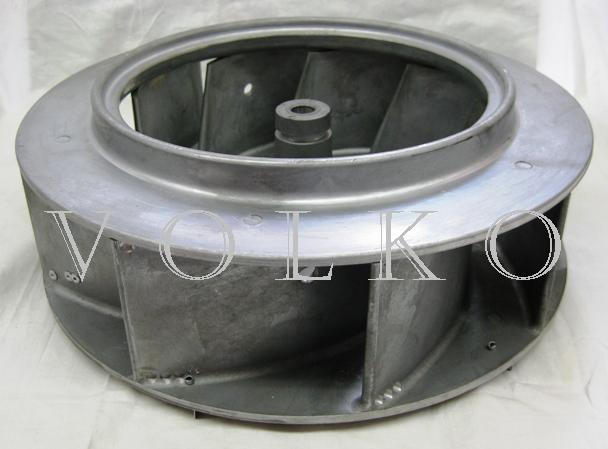

Centrifugal

Also called:
Scoop Wheel or
Back Curved Impeller

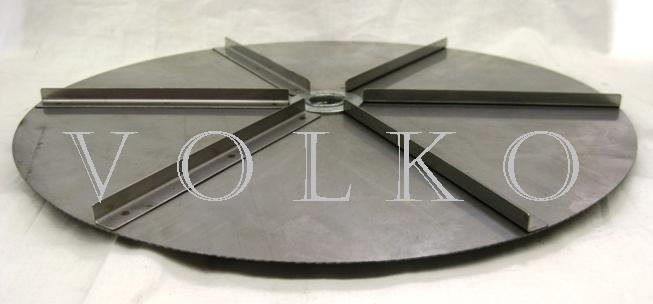

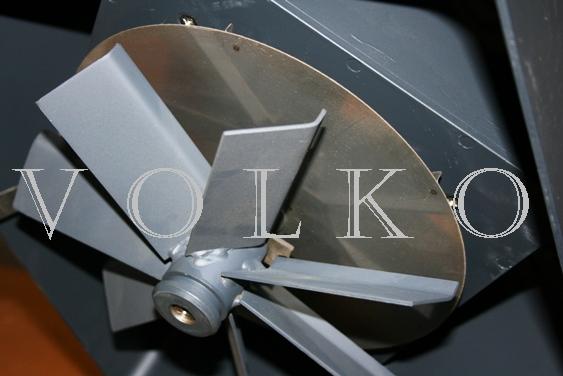

Cooling Vane
Motor Change???.. inspect the cooling vane.
An unbalanced, warped or missing cooling vane could significantly lessen the lifespan of the motor / fan.
Enervex Cooling Vane For GSV / RSV fan. Replacement fan motor blades and parts.

Enervex Cooling Vane For GSV / RSV fan. Replacement fan motor blades and parts.

Used on Centrifugal Blades and with Axial Vanes on GSV / RSV fans

ENERVEX FAN	Cooling Vane	Cooling Vane Part Number
GSV9	8” ( 7 7/8”)	604.0200.0013 RES1100594
GSV12	10” ( 9 13/16”)	604.0400.0013 RES1100593
GSV14	13” ( 12 5/8”)	604.0600.0013 RES1100595
GSV16	16” ( 15")	604.0800.0013 RES1102658

GSV200	Attached
GSV250	Attached
GSV315	Attached

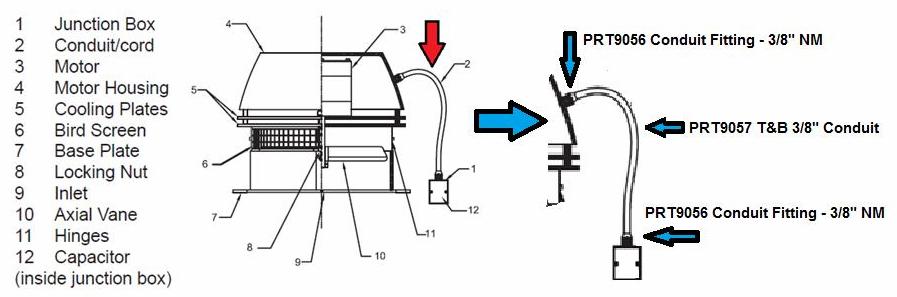

Electrical Wire / Harness Replacement
for RS GSV RSV Exhausto / Enervex Chimney Fans

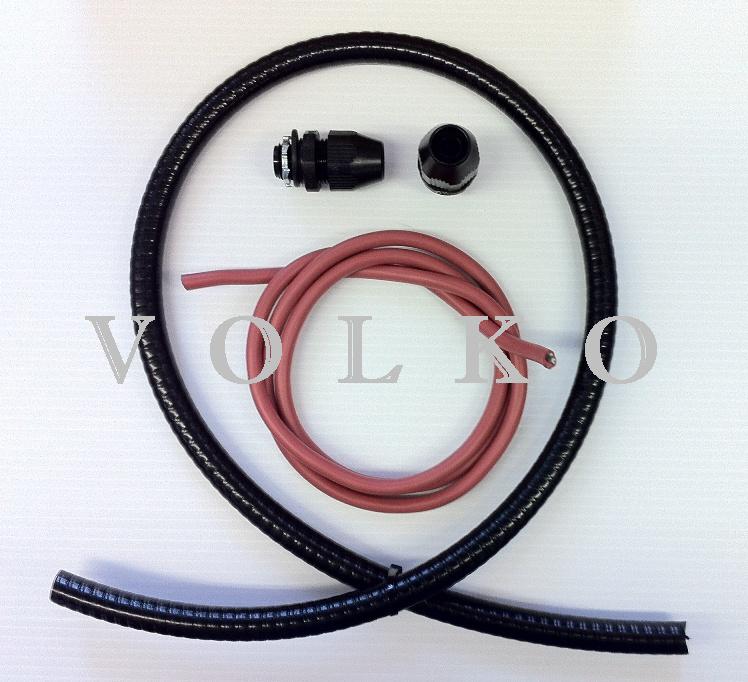

Kit Includes : Conduit, Cord, Fittings & Capacitor

4 FT PRT9057 3/8" Black XTRAFLEX Conduit

5 FT PRT3084 Silicone Cased 4-Wire Harness ( CORD )

2 PC PRT9056 3/8" Conduit Fittings

1 PC Capacitor ( Sized by Fan Model )

All Exhausto / Enervex RS Chimney Fans have capacitor start motors.

Capacitor must be installed for proper fan function.

***Junction box not included.

Capacitor
Wiring Diagram

We only provide genuine Exhausto Exodraft Enervex replacement parts.

Fan Model	RS9 GSV9 RSV9	RS12	RS14 GSV12 RSV12 GSV200 RSV200	RS16	GSV14 RSV14 GSV250 RSV250	GSV16 RSV16 GSV315 RSV315
Motor Type	1200330 E4 651.0501.1200	1200265 G4 651.0502.1200	1200284 J4 651.0503.1200	1200272 T4 651.0505.1200	1200329 Q4 651.0504.1200	1200795 V4 650.0503.1200
Required Capacitor	4 mfd	6 mfd	12 mfd	25 mfd	16 mfd	30 mfd

Call to order - 800 685 8263

Enervex?... but my new fan says Exodraft.
Exhausto is now Exodraft, distributed as Enervex. Read More...
Enervex Fans... draft solutions for kitchen and pizza oven exhaust.

Please call 800 685 8263 or email us (info@volko.com) for prices
